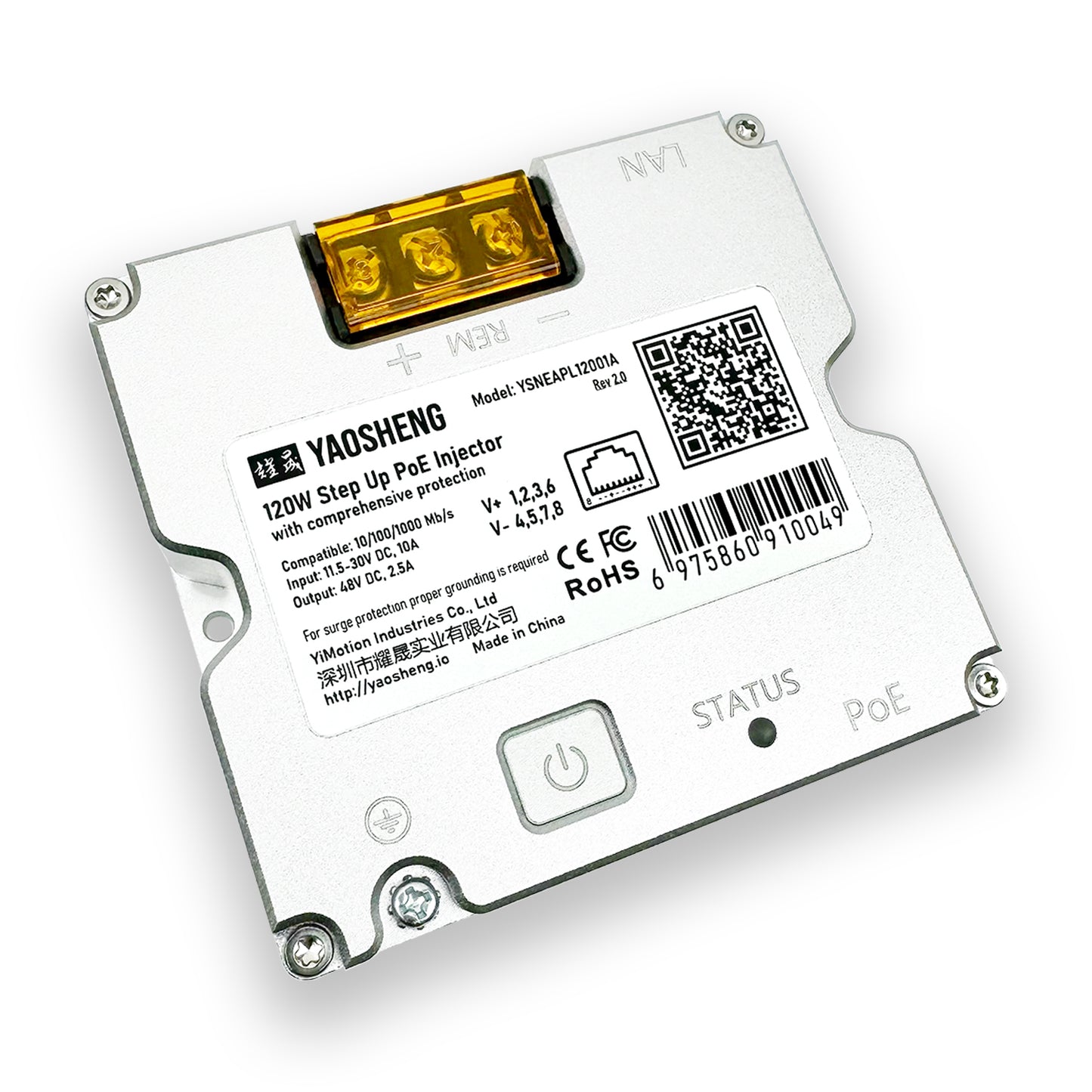

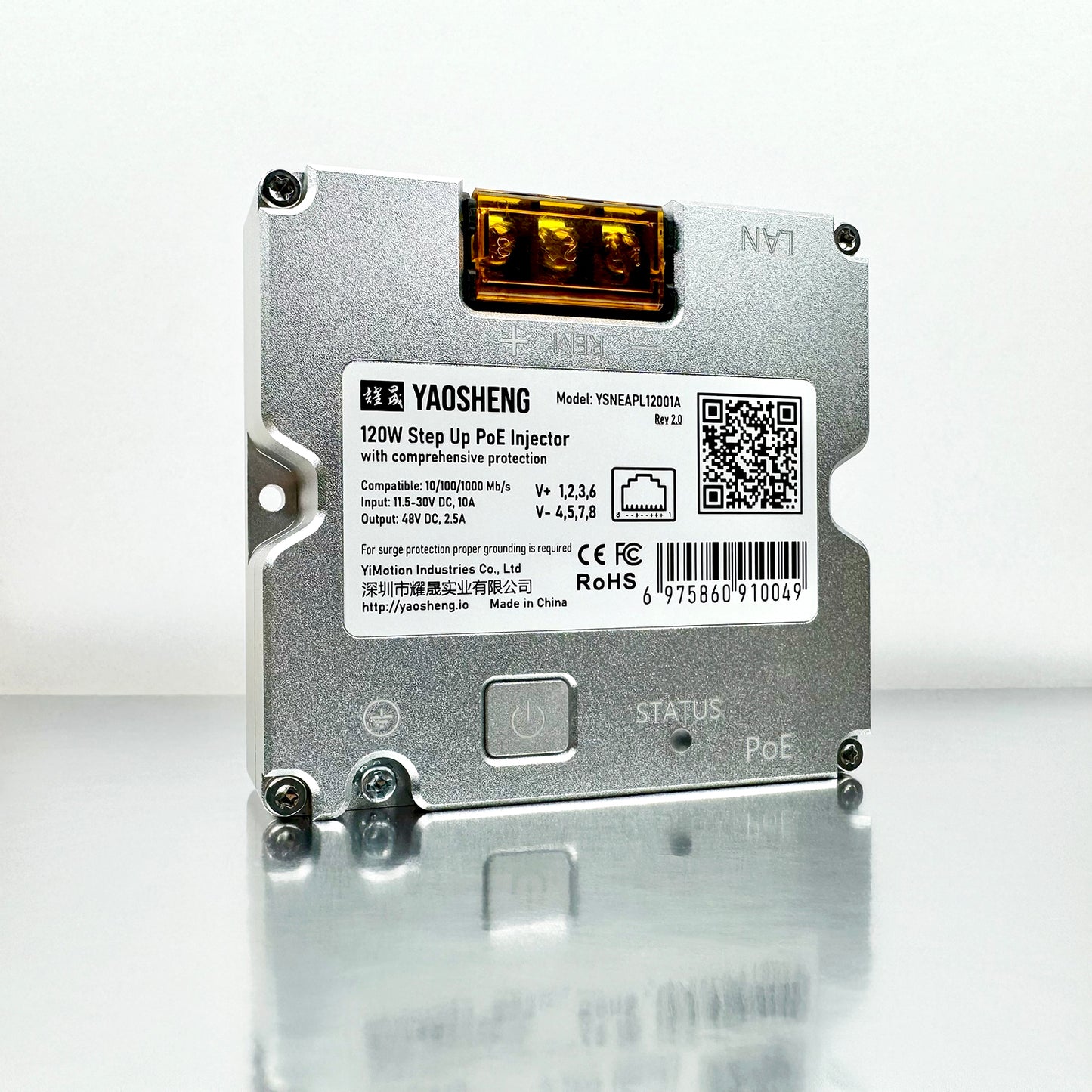

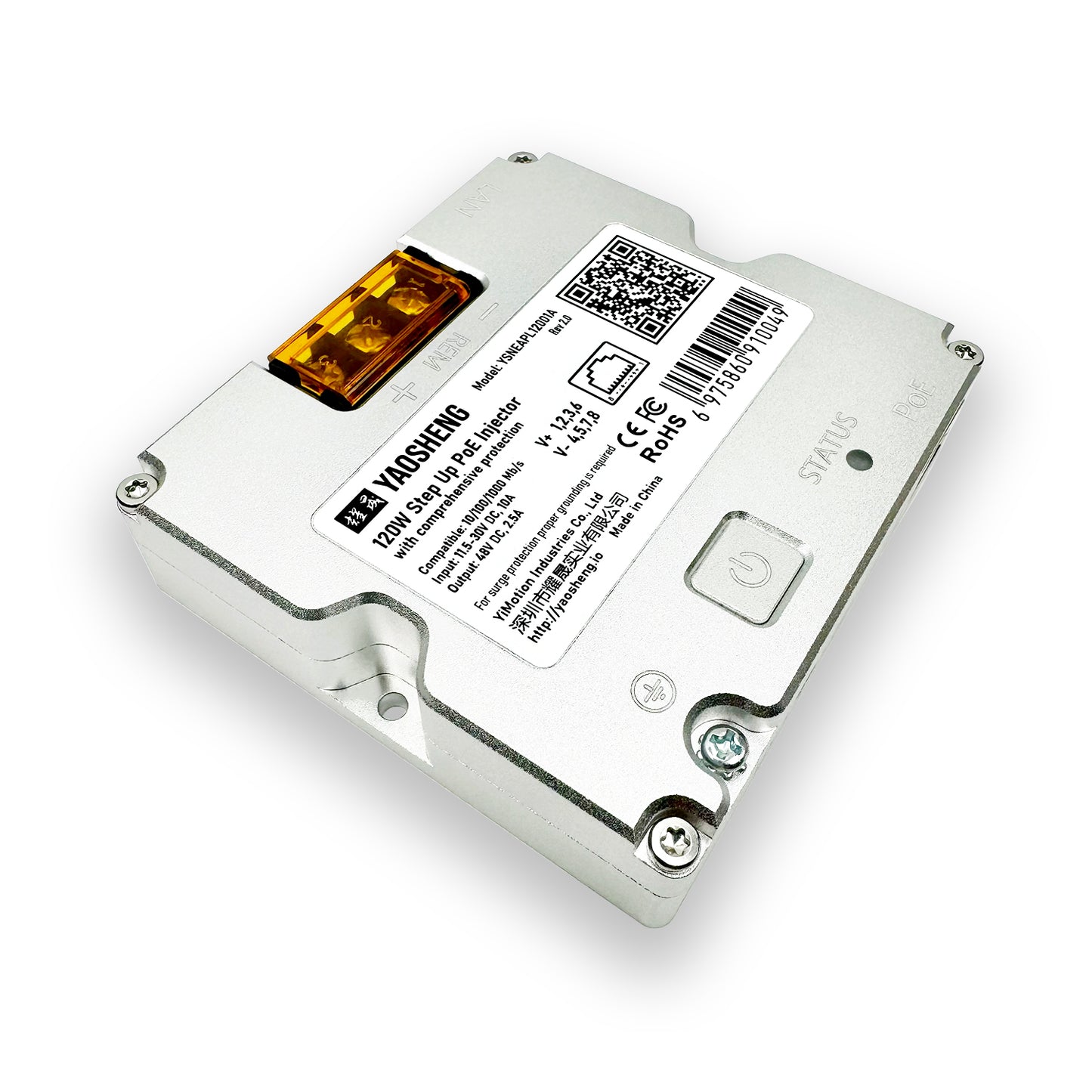

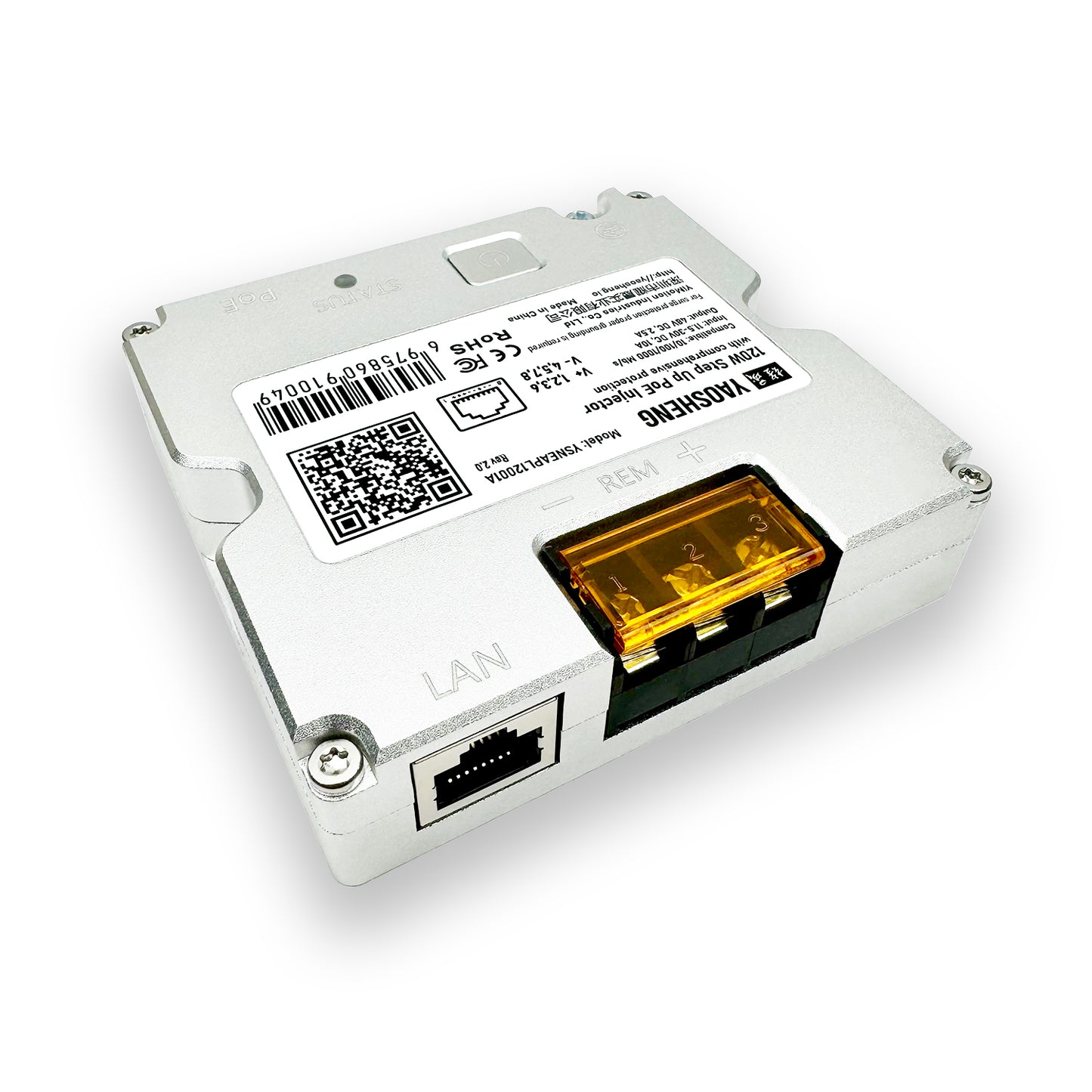

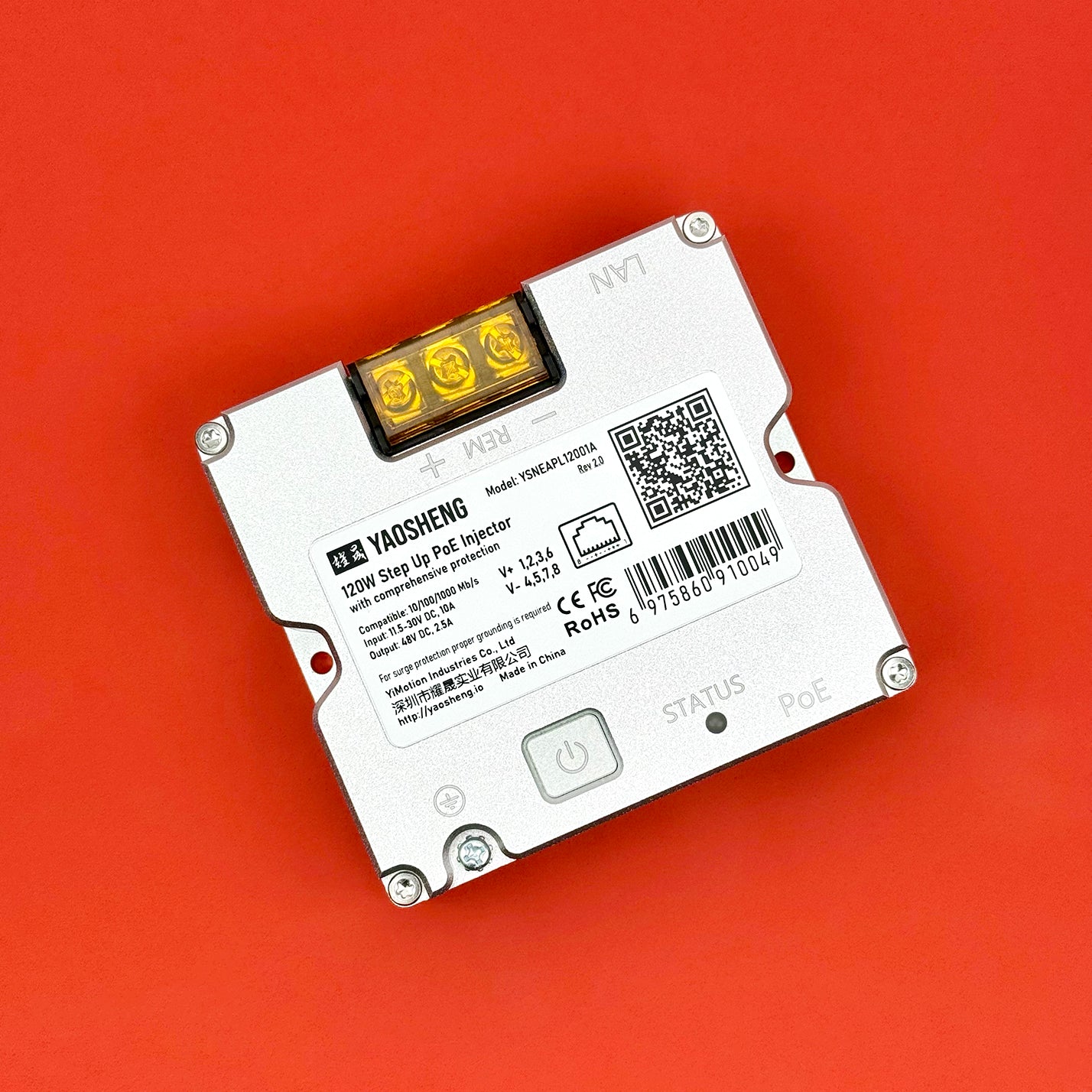

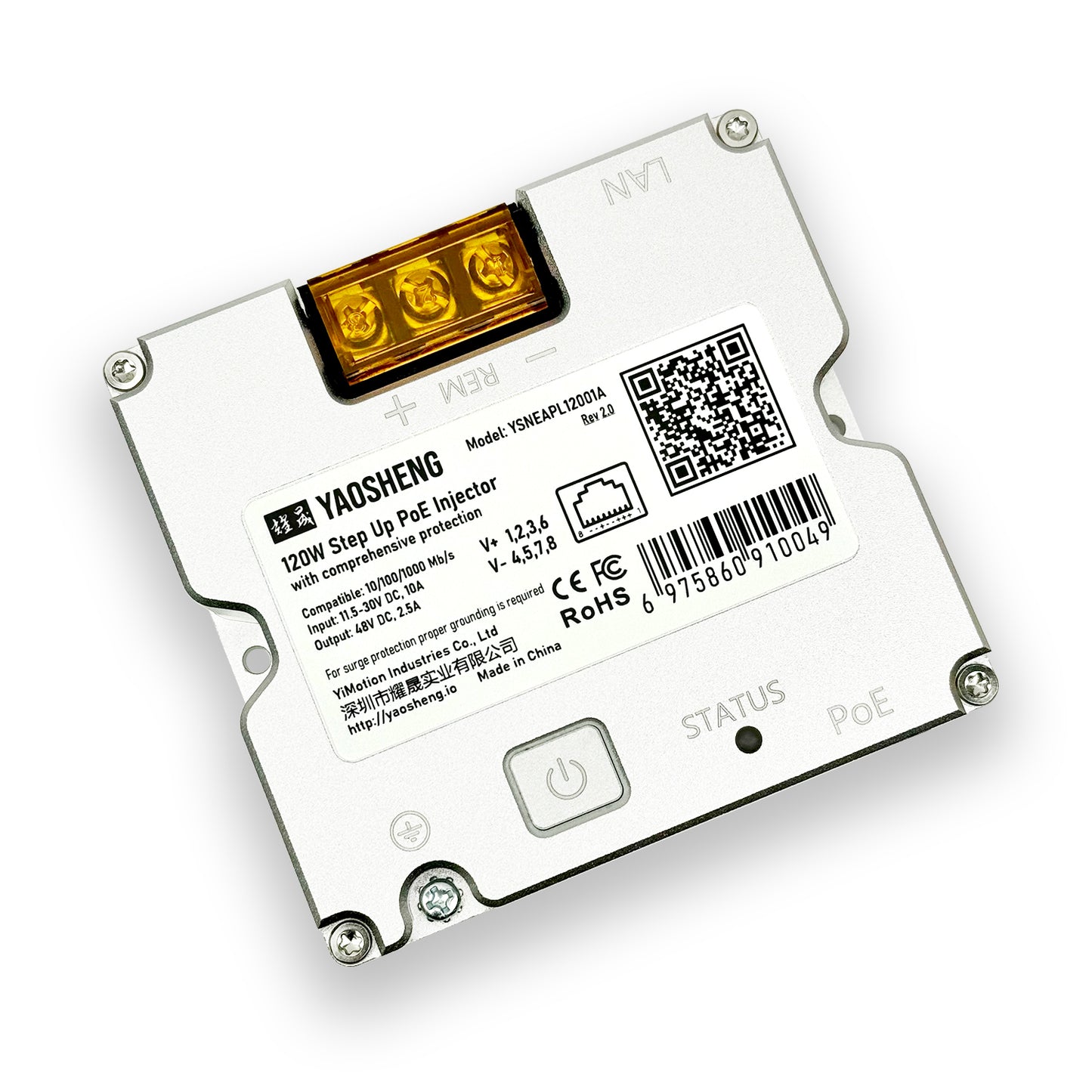

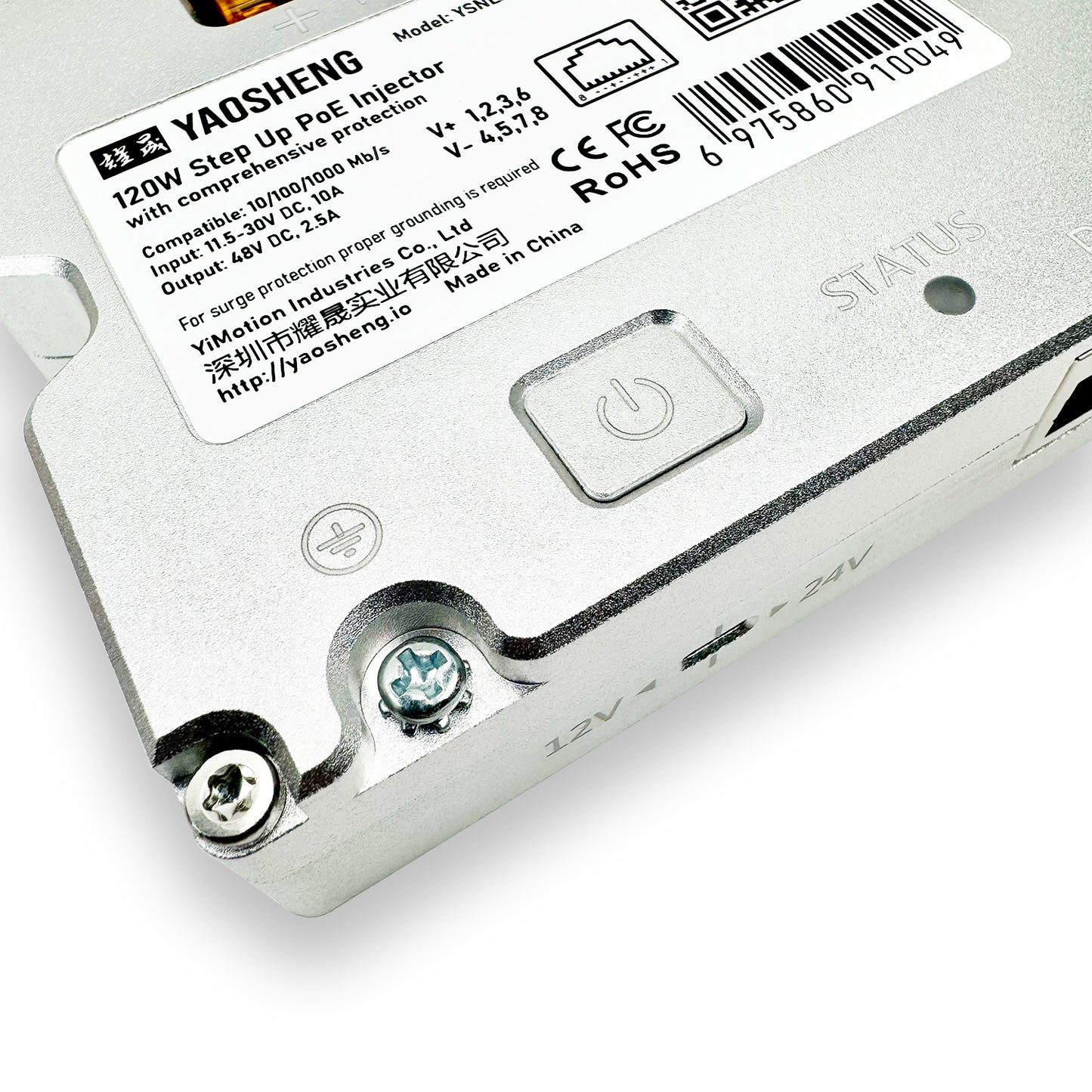

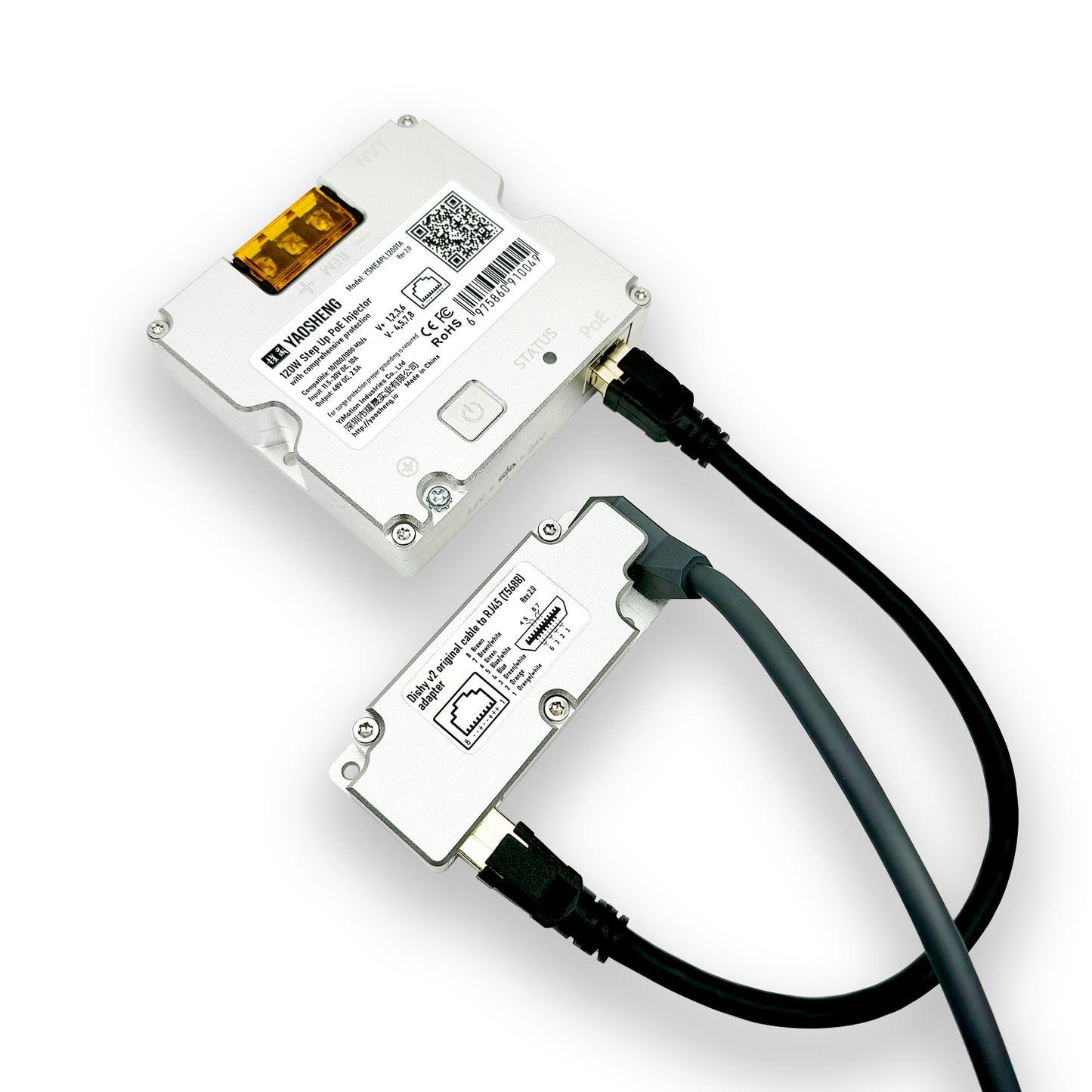

120W Step Up PoE Injector with Comprehensive Protection. Suitable for Standard Actuated Starlink (Rectangular Dishy v2).
120W Step Up PoE Injector with Comprehensive Protection. Suitable for Standard Actuated Starlink (Rectangular Dishy v2).
Couldn't load pickup availability
Designed especially for Standard Actuated Starlink (Rectangular Dishy v2)
This product was developed for use in campers or yachts, and we decided that the function of protecting the battery from heavy discharge would be a necessary addition.
This device has two operating modes:
- Free mode, which does not protect the battery from over-discharge. At the same time, it can ensure operation over the entire available voltage range from 10 to 30 volts.

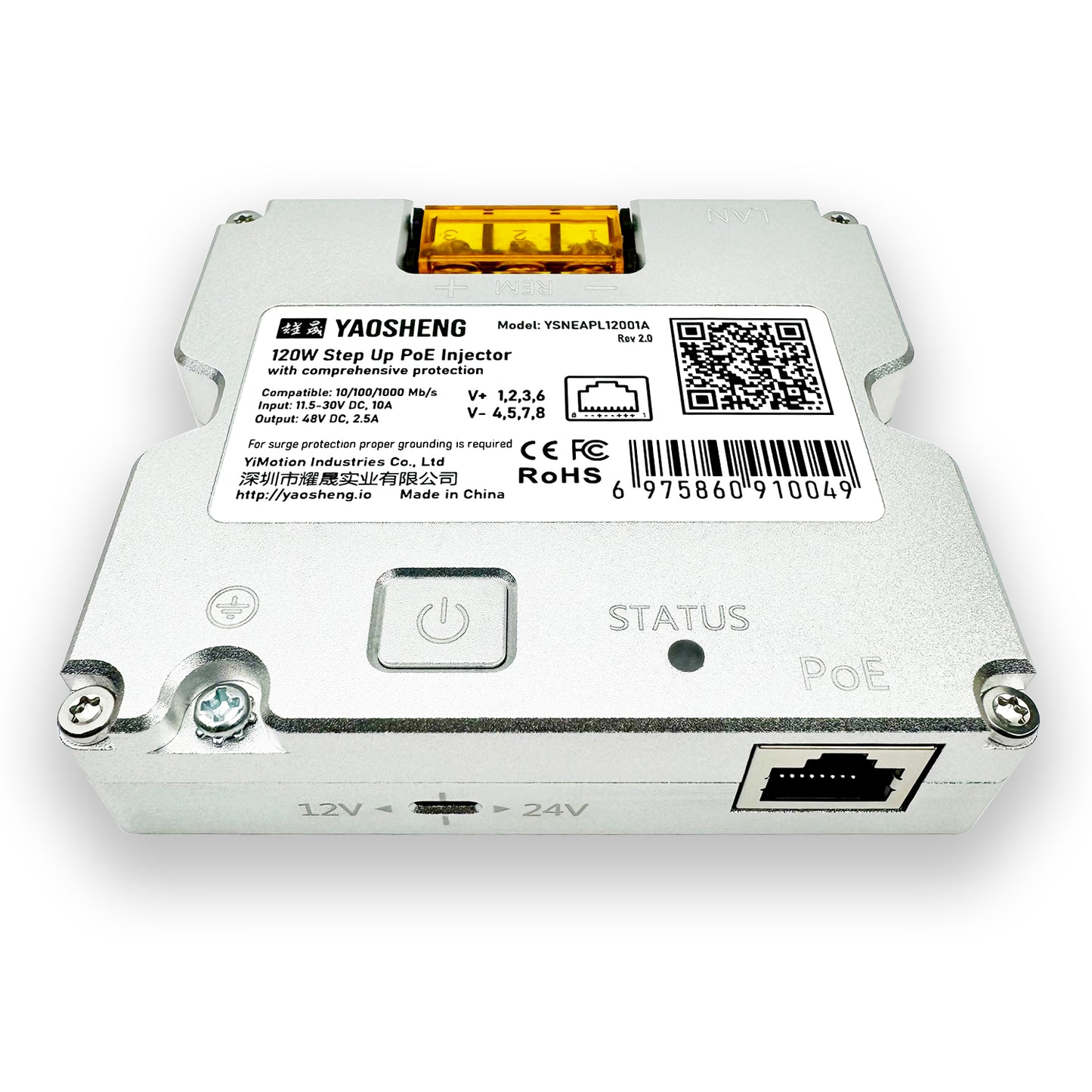

- 12/24 volt mode, the device detects the input voltage and selects the operating voltage range accordingly.
If the input voltage is 10.5-16 volts, the device is considered connected to a 12-volt network.
If the input voltage is 22-28 volts, the operating mode with a 24-volt battery will be selected.
Any other input voltage enables Free mode.
By default, the second operating mode is set; to enable the Free mode, you must disassemble the device and move the jumper to another position.
Description of functions and an indication of device states, which are the same for both modes:
| 1. Booting | • LED indication: White LED – 3 sec |
| 2. Short circuit on PoE Port |
Short circuit for less 20 sec - output OFF • LED indication: 🔴 LED Short circuit for more 20 sec - output OFF • LED indication: Blinking 🔵❖🔴 LED The output is locked; a reboot is needed after a short circuit is eliminated. |
| 3. Overheat control |
If device temperature higher 80ºC/176°F - output OFF • LED indication: Blinking 🔵 LED Return to regular work at a temperature lower than 70ºC/158°F |
Functions that differ in different modes:
|
4. Normal work: |
|
||||||
| 5. Voltage limits: |
|
Specifications:
| Parameter | Value |
| Configuration | 4 Pair high power PoE injection |
| Injection type | Passive |
| Pinout | +V: 1,2,3,6 -V: 4,5,7,8 |
| Network speed compatibility | 10/100/1000 Mb/s |
| Absolute input rate | 10.0 - 30.0 VDC, up to 12A |
| Output rate | 48 VDC, up to 2.5A |
| Output power | 120W max |
| Protections | Surge protection, MCU-based logic |
| Operating temperature | -20 to +55 °C |
| Operating humidity | 10 - 90% (non condensing) |
| Storage temperature | -40 to +70 °C |
| Model number | YSNEAPL12001A |
Note: Product specifications are subject to change without prior notice to improve reliability, function, design, or otherwise.
