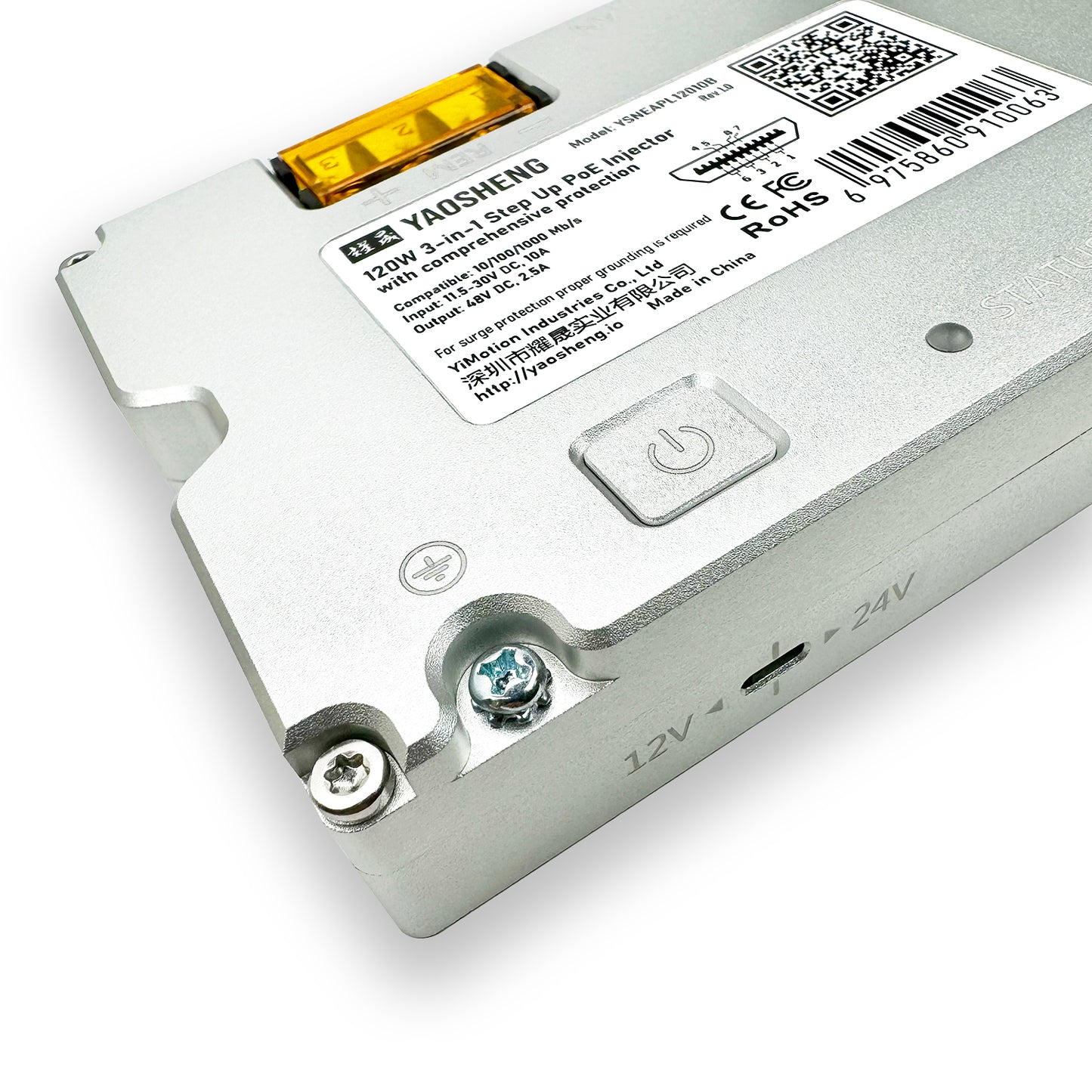

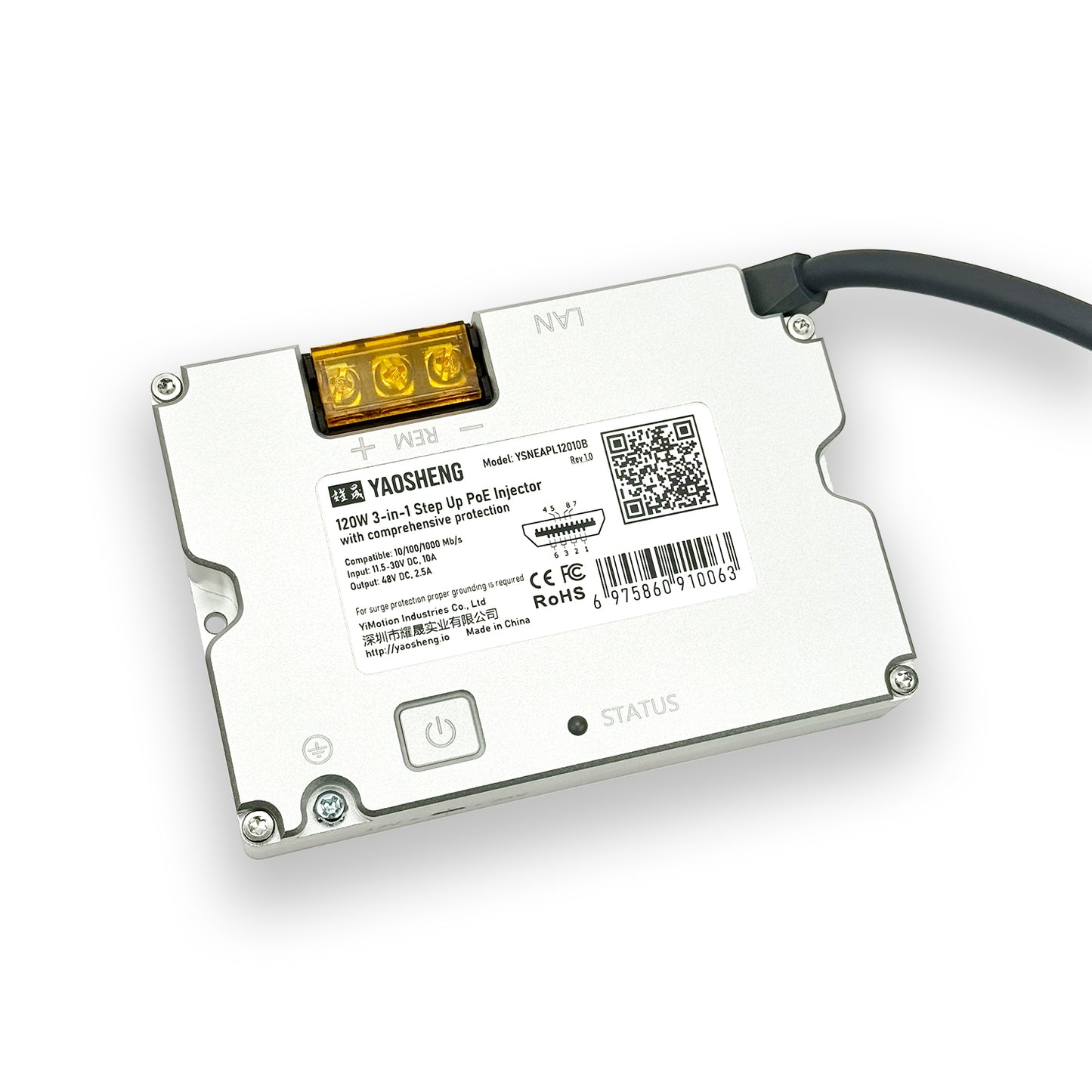

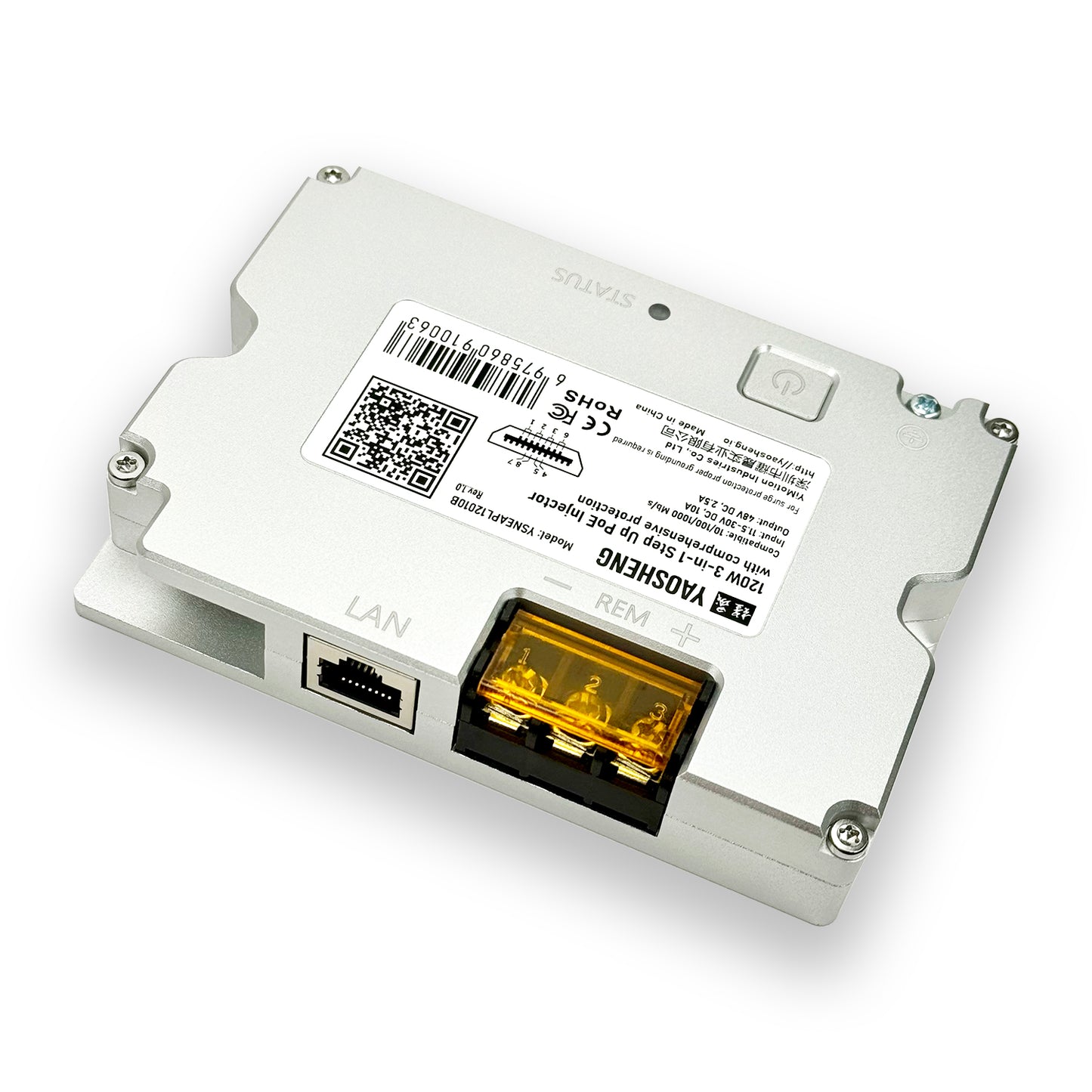

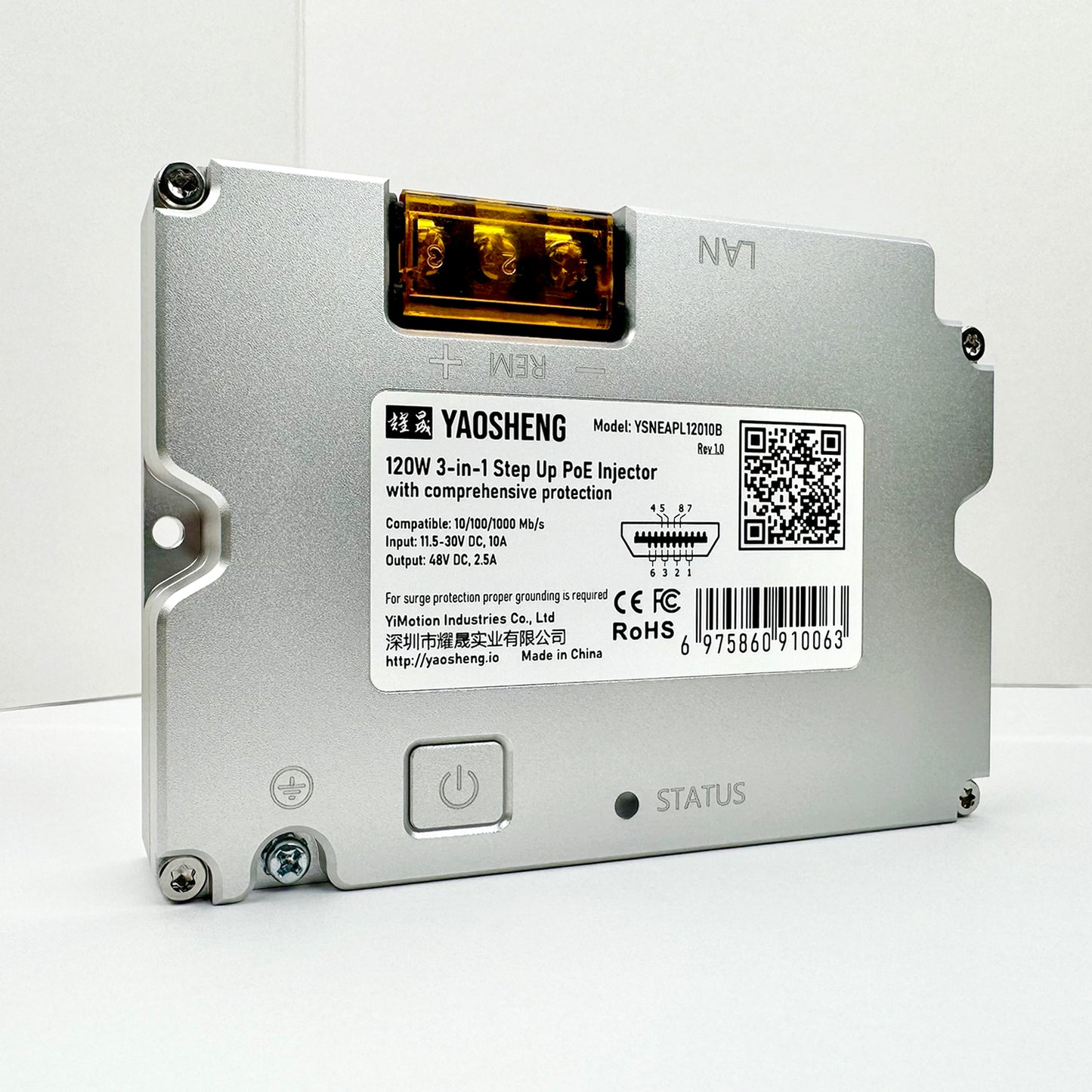

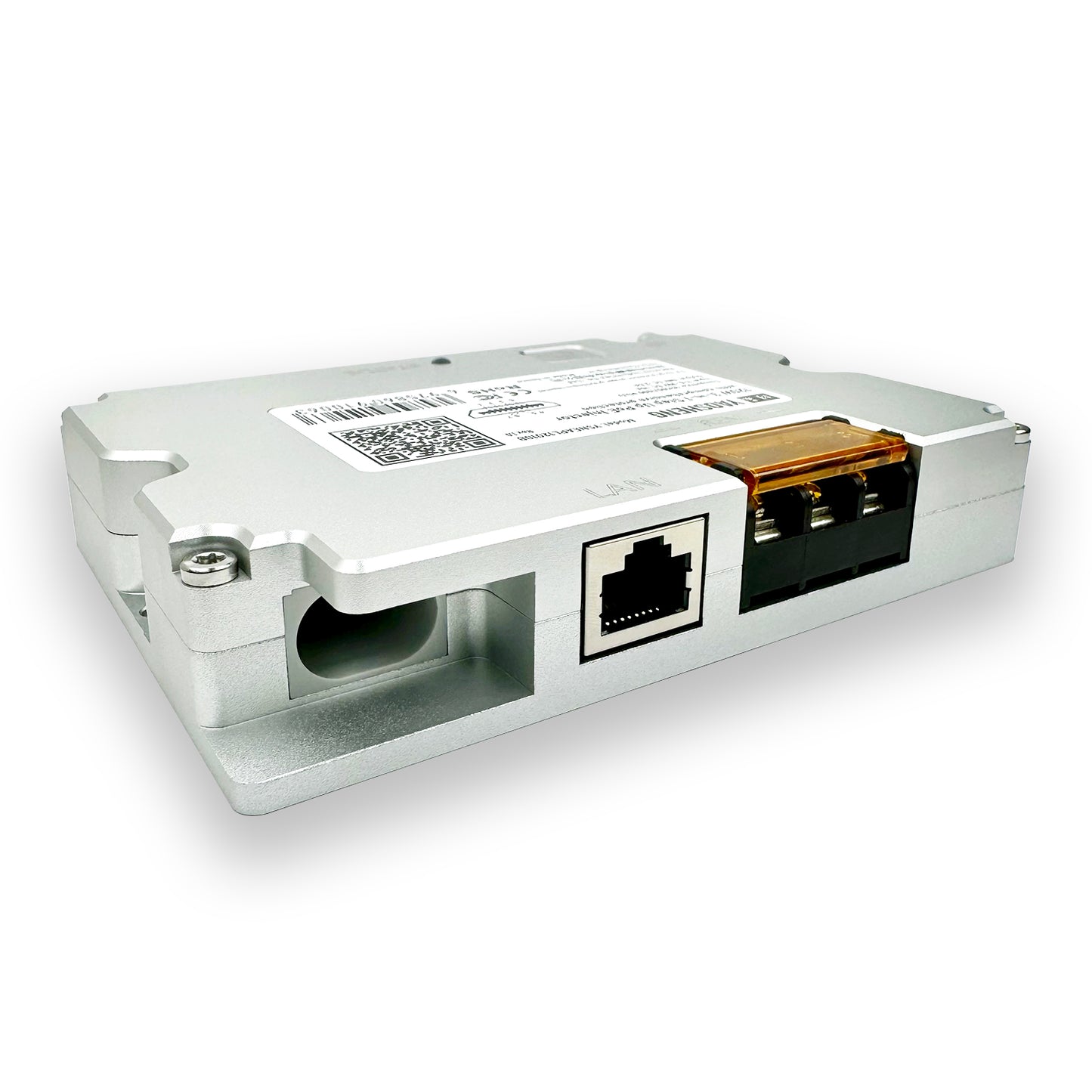

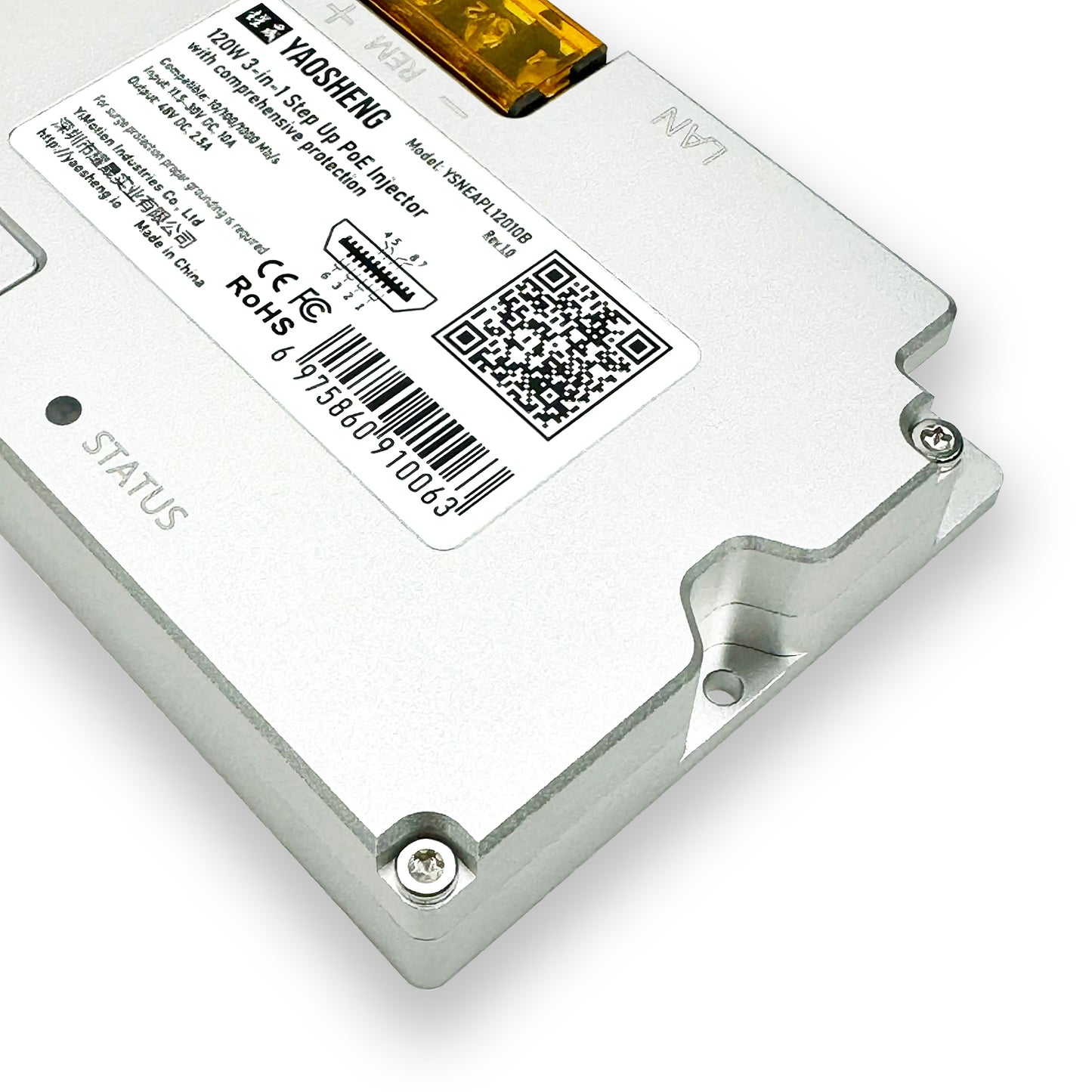

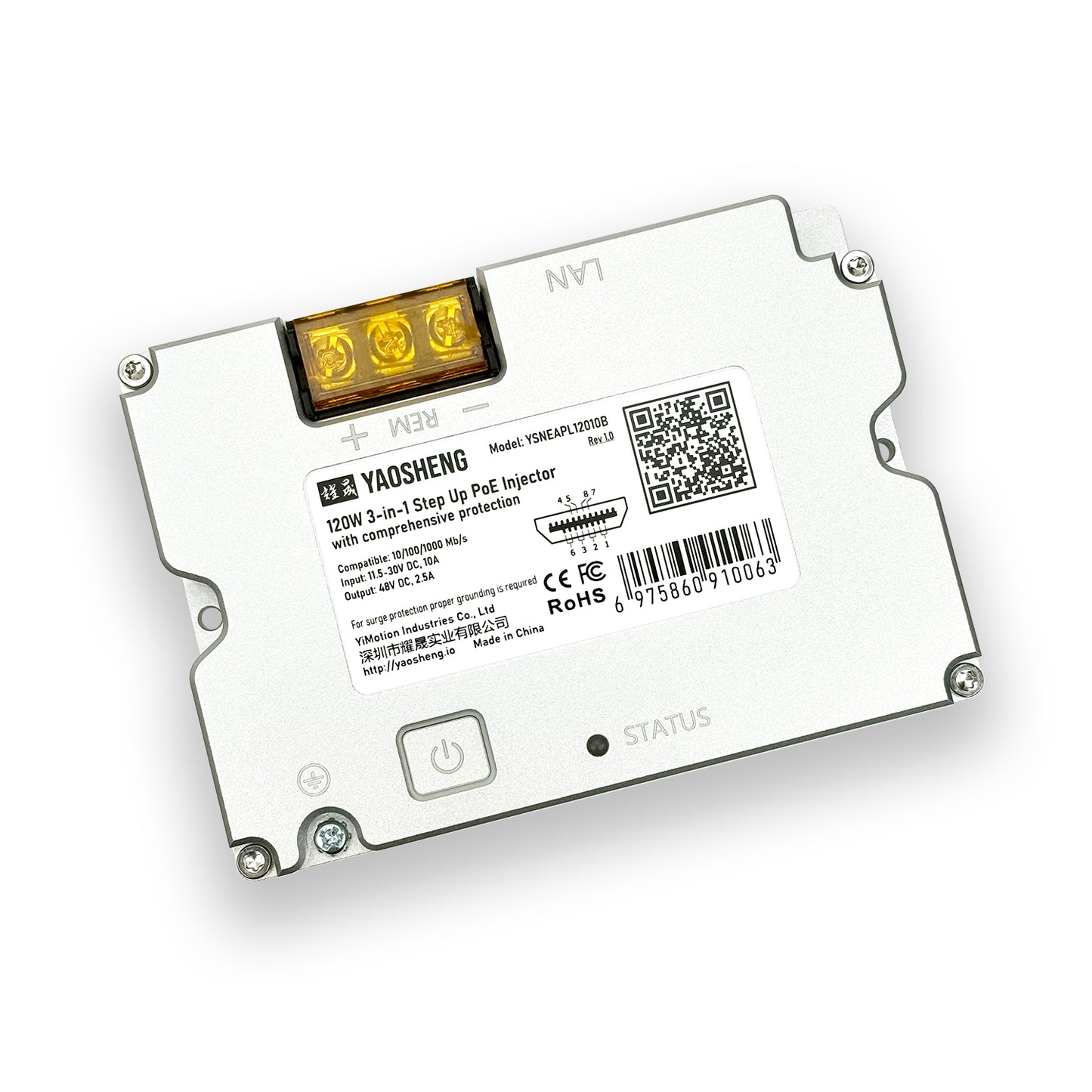

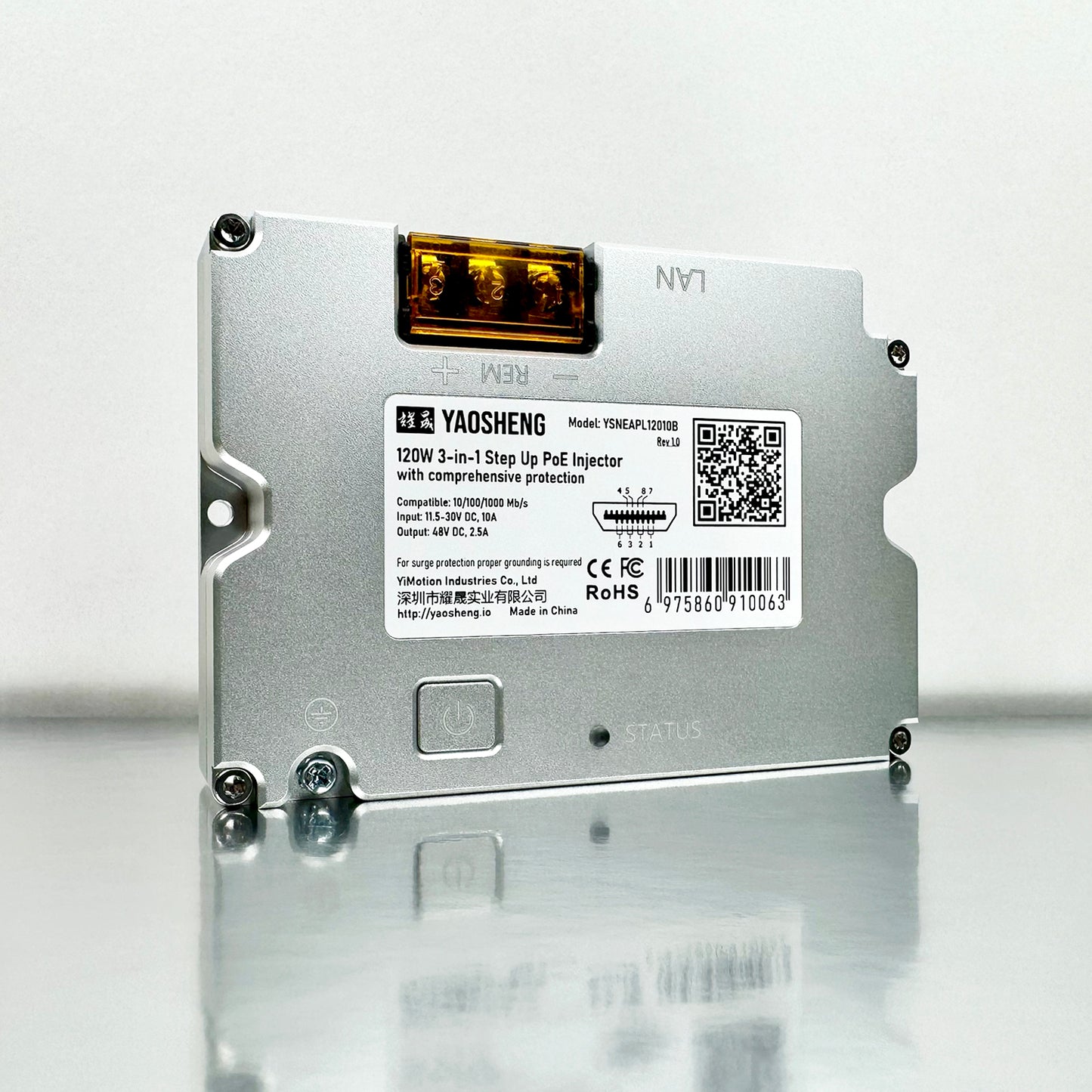

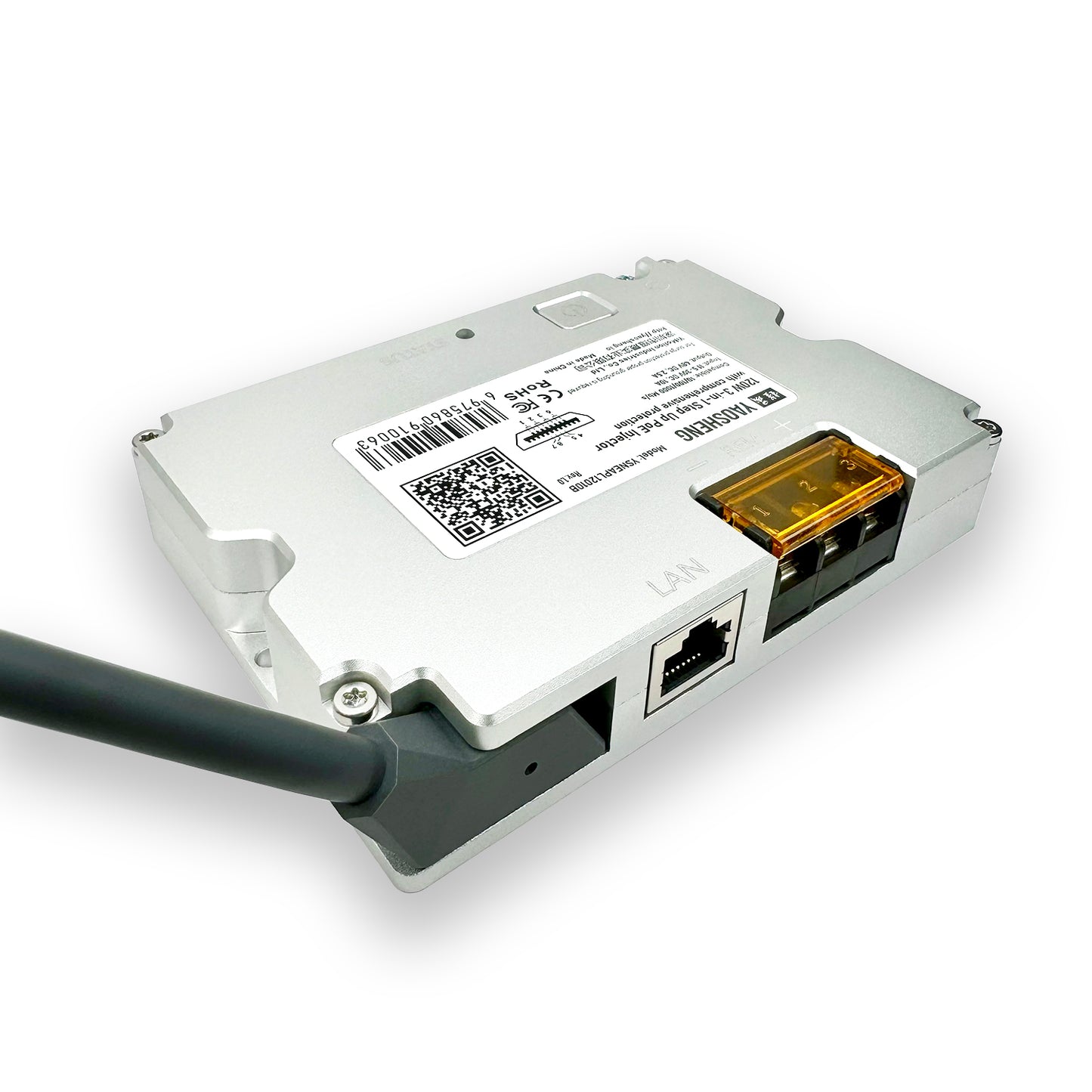

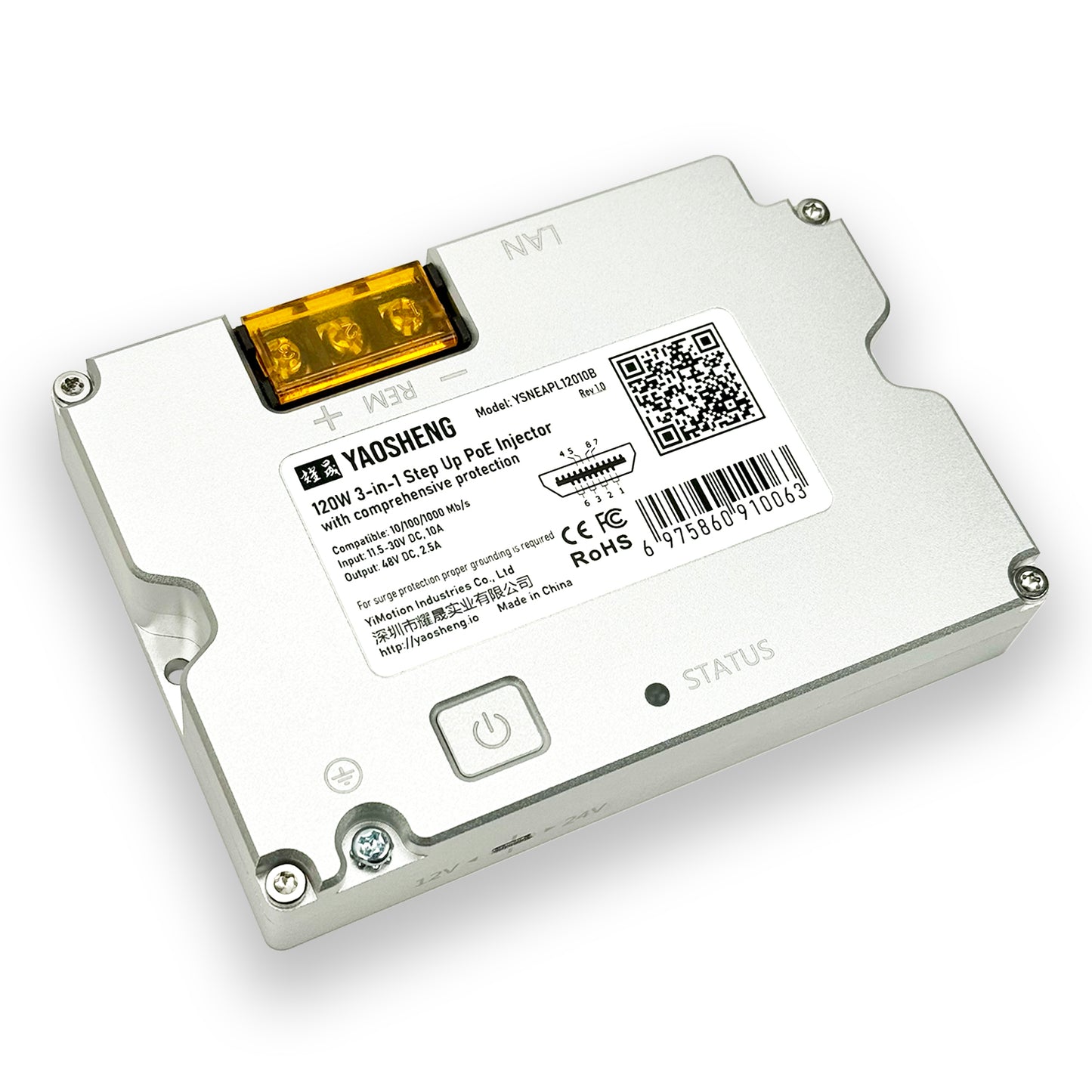

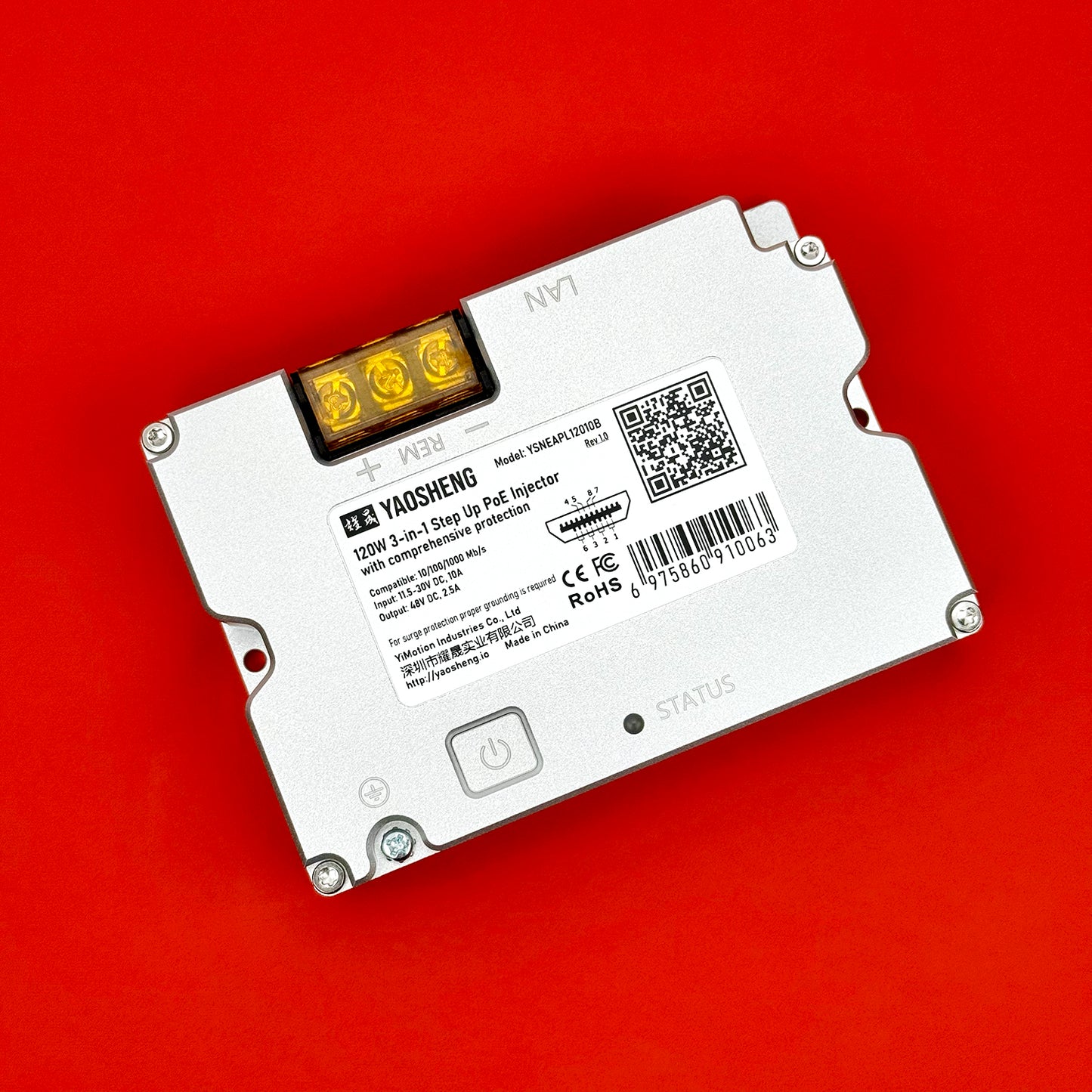

3 in 1. 120W Step Up PoE Injector with Comprehensive Protection and SPX adapter.

3 in 1. 120W Step Up PoE Injector with Comprehensive Protection and SPX adapter.

Regular price $105.00 USD
Regular price $159.90 USD Sale price $105.00 USD
Sale Sold out
Shipping calculated at checkout.

Designed especially for Standard Actuated Starlink (Rectangular Dishy v2)

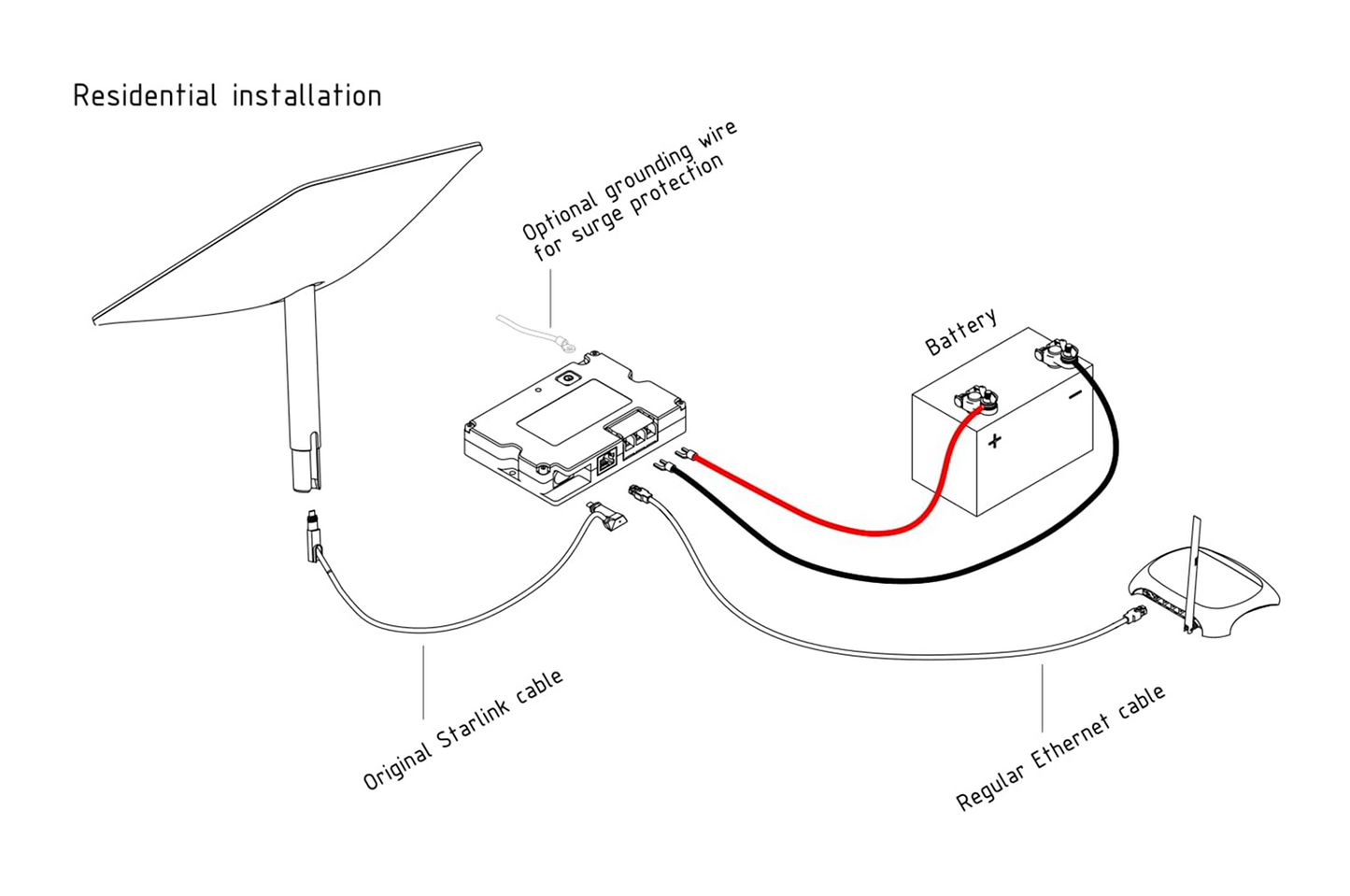

This product was developed for use in campers or yachts, and we decided that the function of protecting the battery from heavy discharge would be a necessary addition.

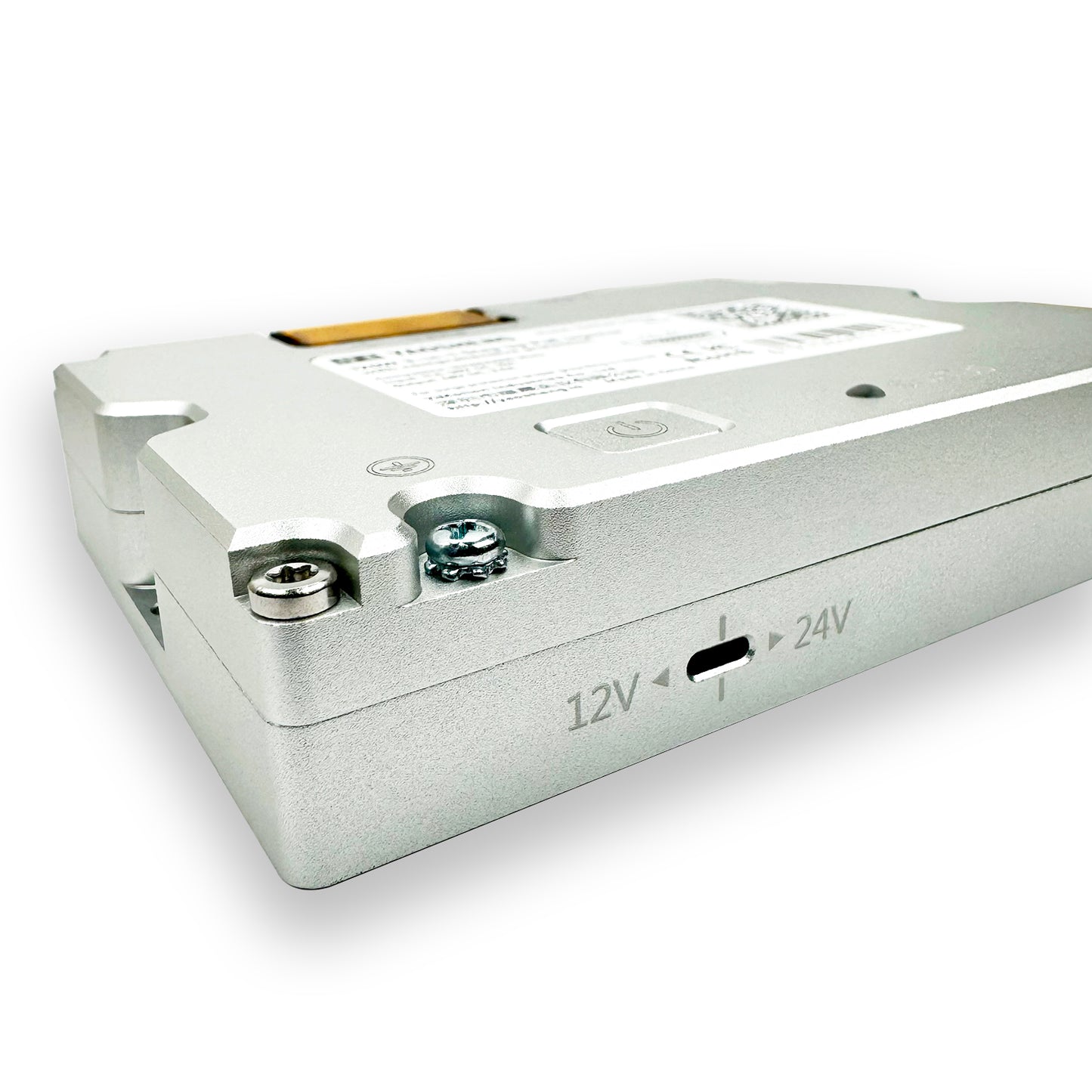

This device has three operating modes:

  1. Free mode, which does not protect the battery from over-discharge. At the same time, it can ensure operation over the entire available voltage range from 10 to 30 volts.
  2. 12 volt mode - with battery discharge protection
  3. 24 volt mode - with battery discharge protection

All-in-one device. Voltage converter + PoE injector + SPX Adapter.


Description of functions and an indication of device states, which are the same for both modes:

1. Booting   • LED indicationWhite LED – 3 sec
2. Short circuit on PoE Port

  Short circuit for less 20 sec - output OFF

  • LED indication: 🔴 LED

  Short circuit for more 20 sec - output OFF

  • LED indication: Blinking 🔵🔴 LED

  The output is locked; a reboot is needed after a short circuit is eliminated.

3.  Overheat control

 If device temperature higher 80ºC/176°F - output OFF

  • LED indication: Blinking 🔵 LED

  Return to regular work at a temperature lower than 70ºC/158°F


Functions that differ in different modes:

4. Normal work:

Free Mode after Booting ▷ 🟢 LED
12V Mode after Booting 🟠 LED blinks 2 times 🟢 LED
24V Mode after Booting 🟣 LED blinks 2 times 🟢 LED
5. Voltage limits:
Free Mode

< 10.0V – Under-voltage - power OFF Blinking 🟡🔴 LED

> 30.0V – Over-voltage - power OFF ▷ Blinking 🔴 LED

12V Mode

< 11.6V – Battery Low - power OFF  Blinking 🟡🔴 LED

< 11.9V – Battery 40% ▷ Blinking 🟢🔴 LED

> 16.0V – Over-voltage ▷  Blinking 🔴 LED

24V Mode

< 23.4V – Battery Low - power OFF  Blinking 🟡🔴 LED

< 24.0V – Battery 40% ▷ Blinking 🟢🔴 LED

> 28.0V – Over-voltage ▷  Blinking 🔴 LED



Parameter Value
Configuration 4 Pair high power PoE injection
Injection type Passive
Pinout +V: 1,2,3,6 -V: 4,5,7,8
Network speed compatibility 10/100/1000 Mb/s
Absolute input rate 10.0 - 30.0 VDC, up to 12A
Output rate 48 VDC, up to 2.5A
Output power 120W max
Protections Surge protection, MCU-based Comprehensive Protection
Operating temperature -20 to +55 °C
Operating humidity 10 - 90% (non condensing)
Storage temperature -40 to +70 °C
Model number YSNEAPL12001A


Note: Product specifications are subject to change without prior notice to improve reliability, function, design, or otherwise.
