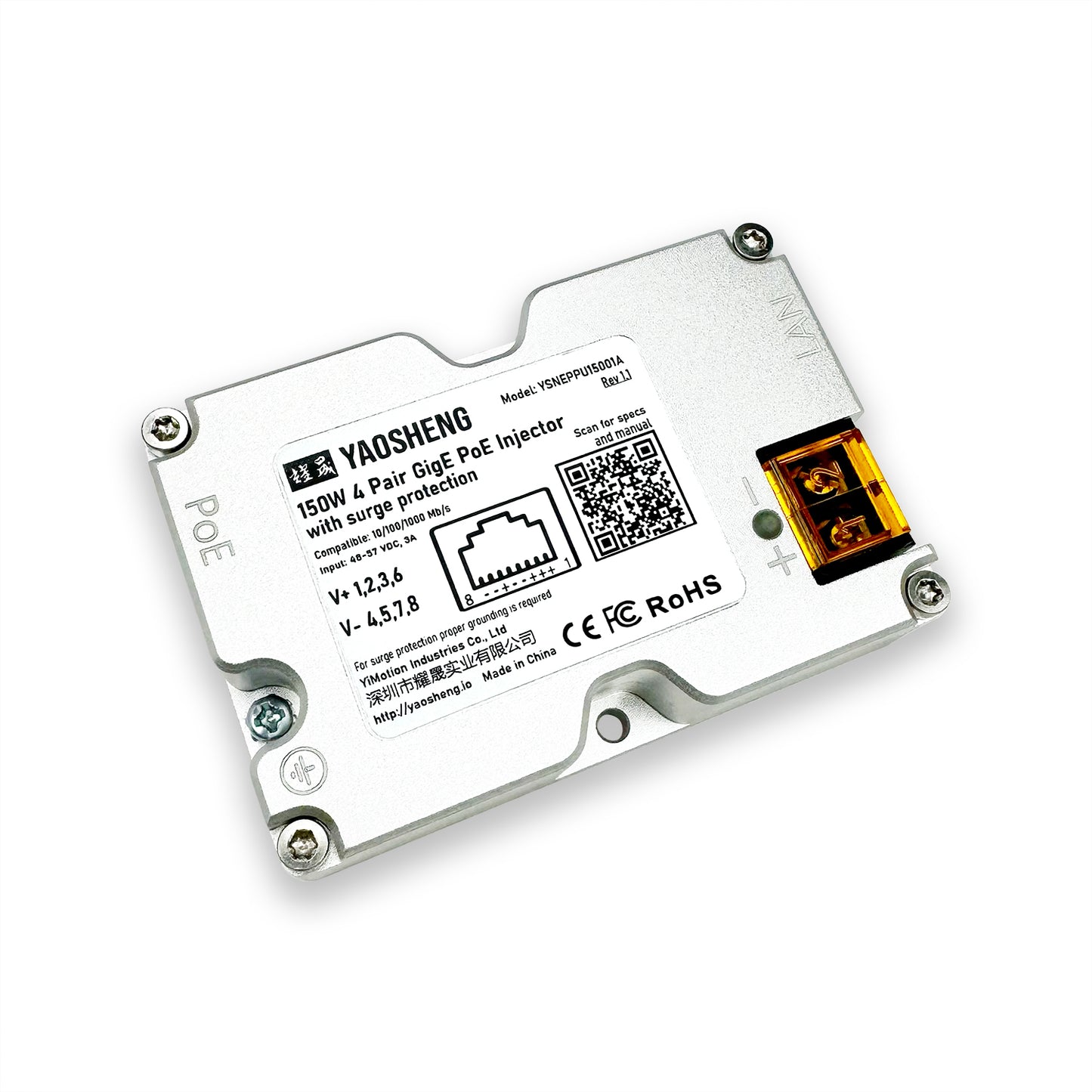

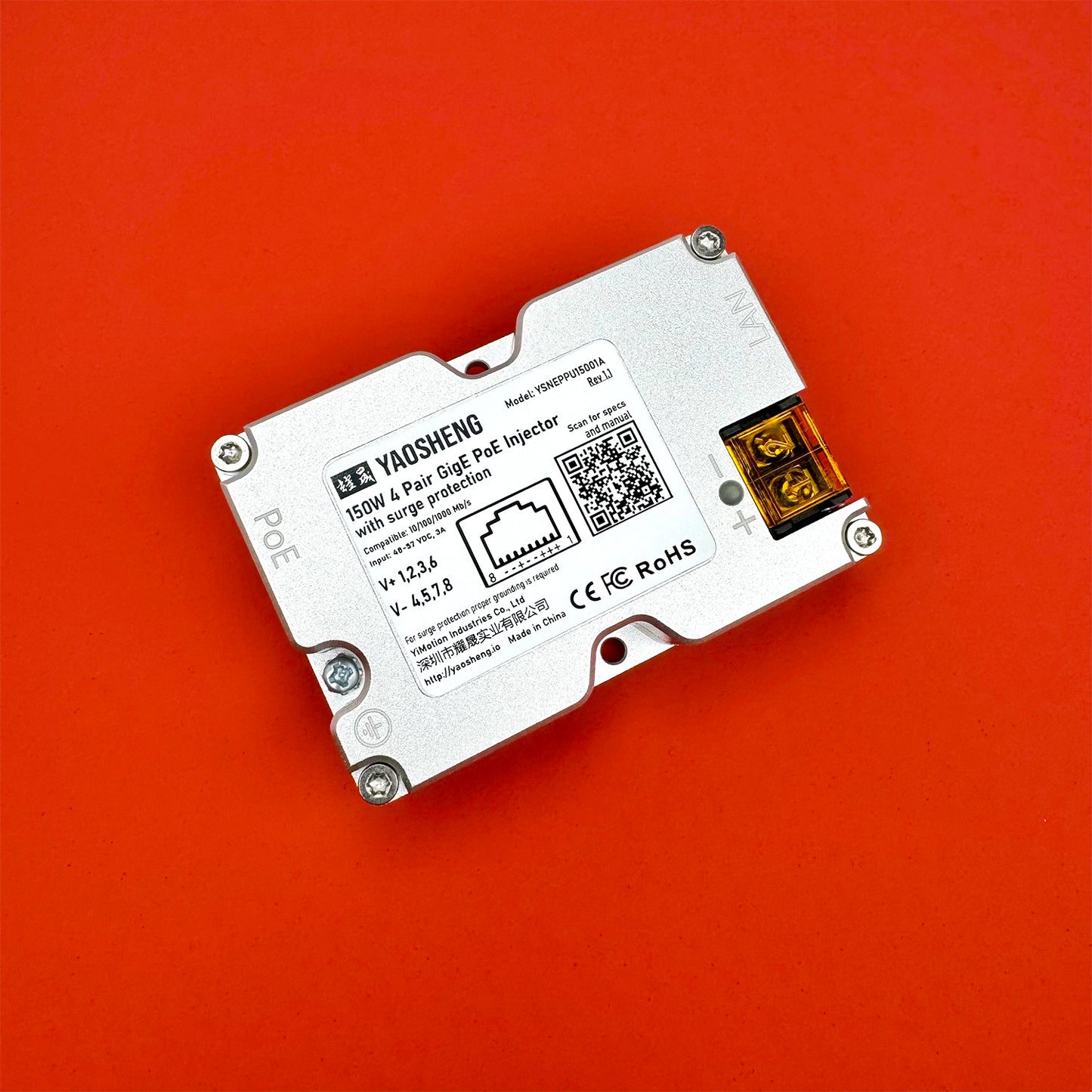

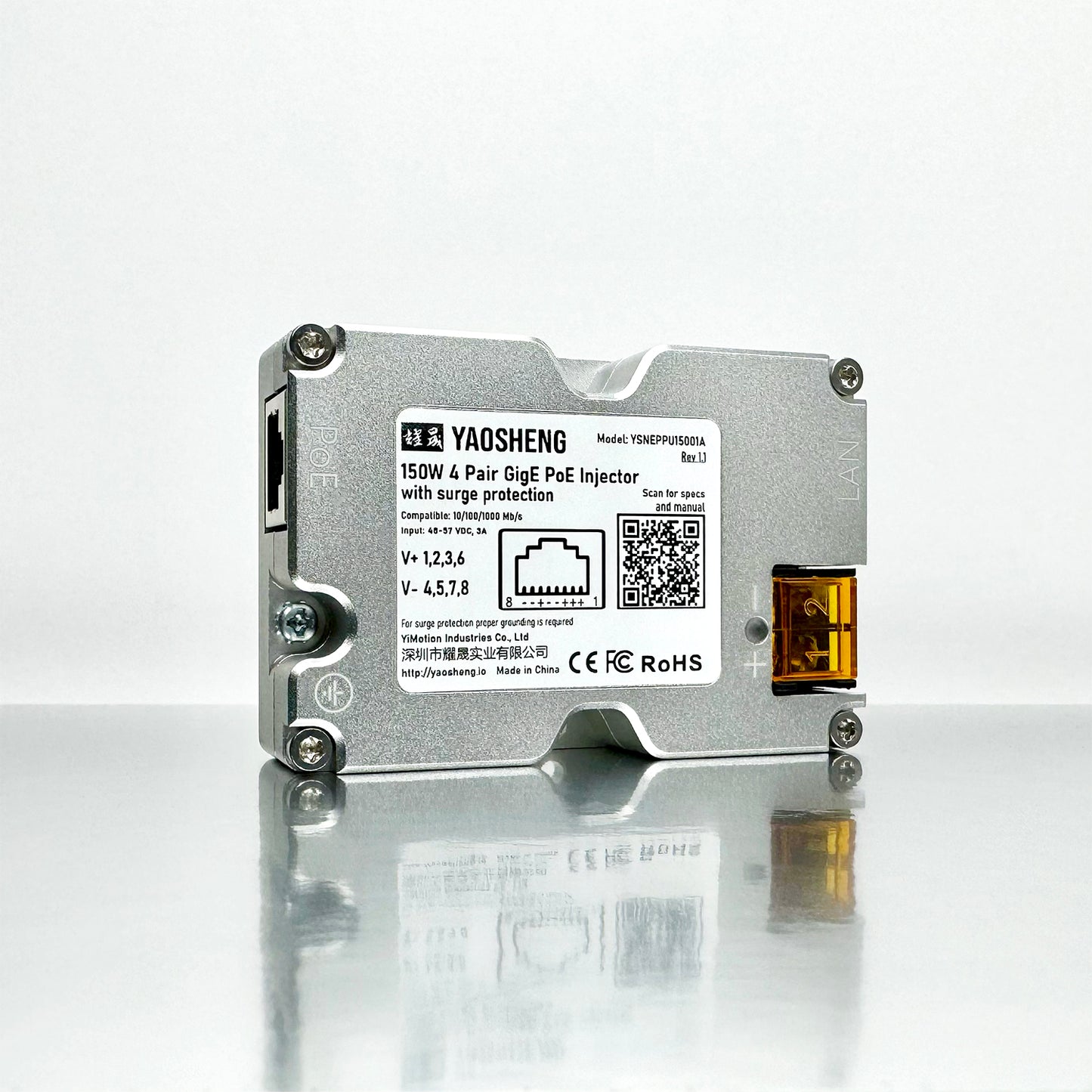

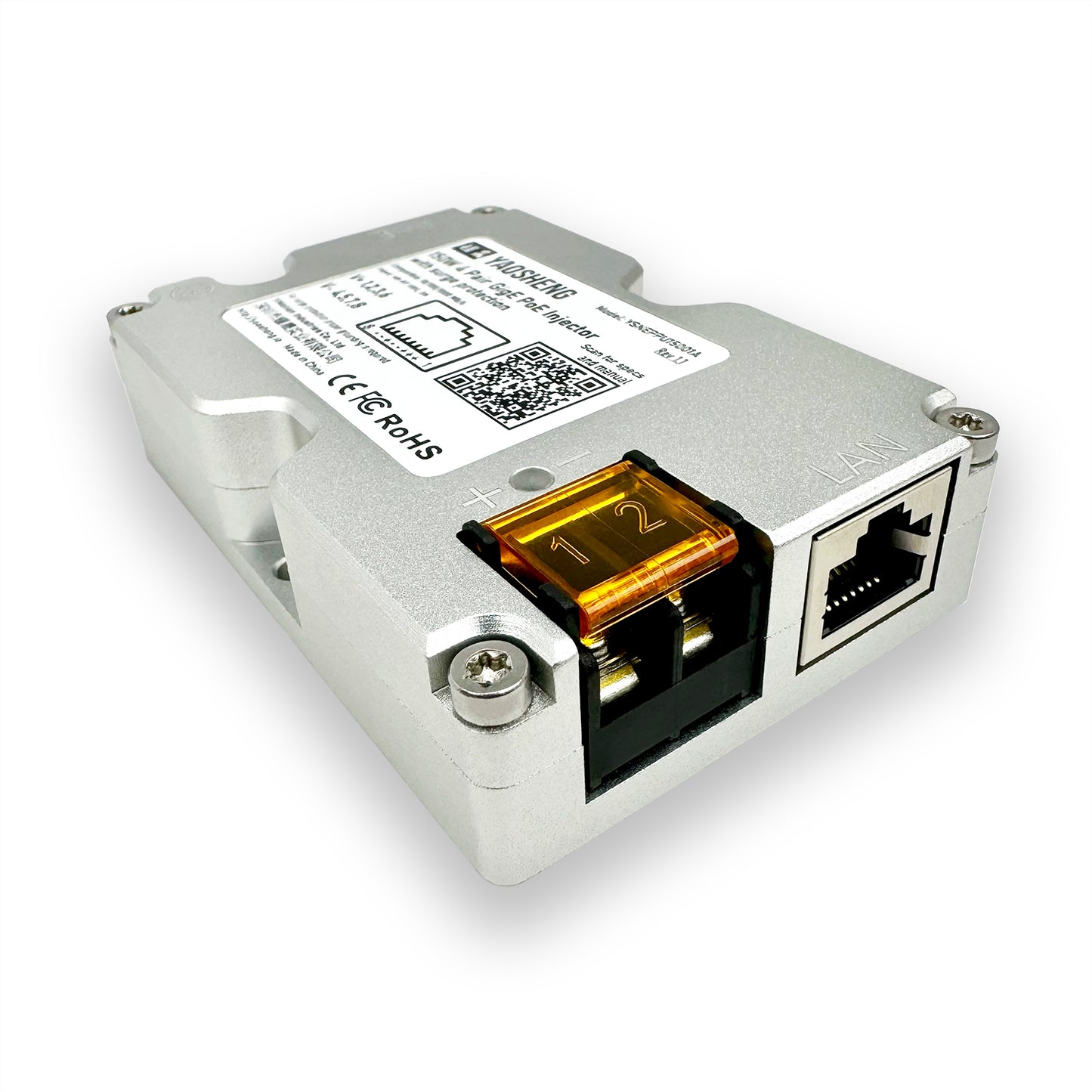

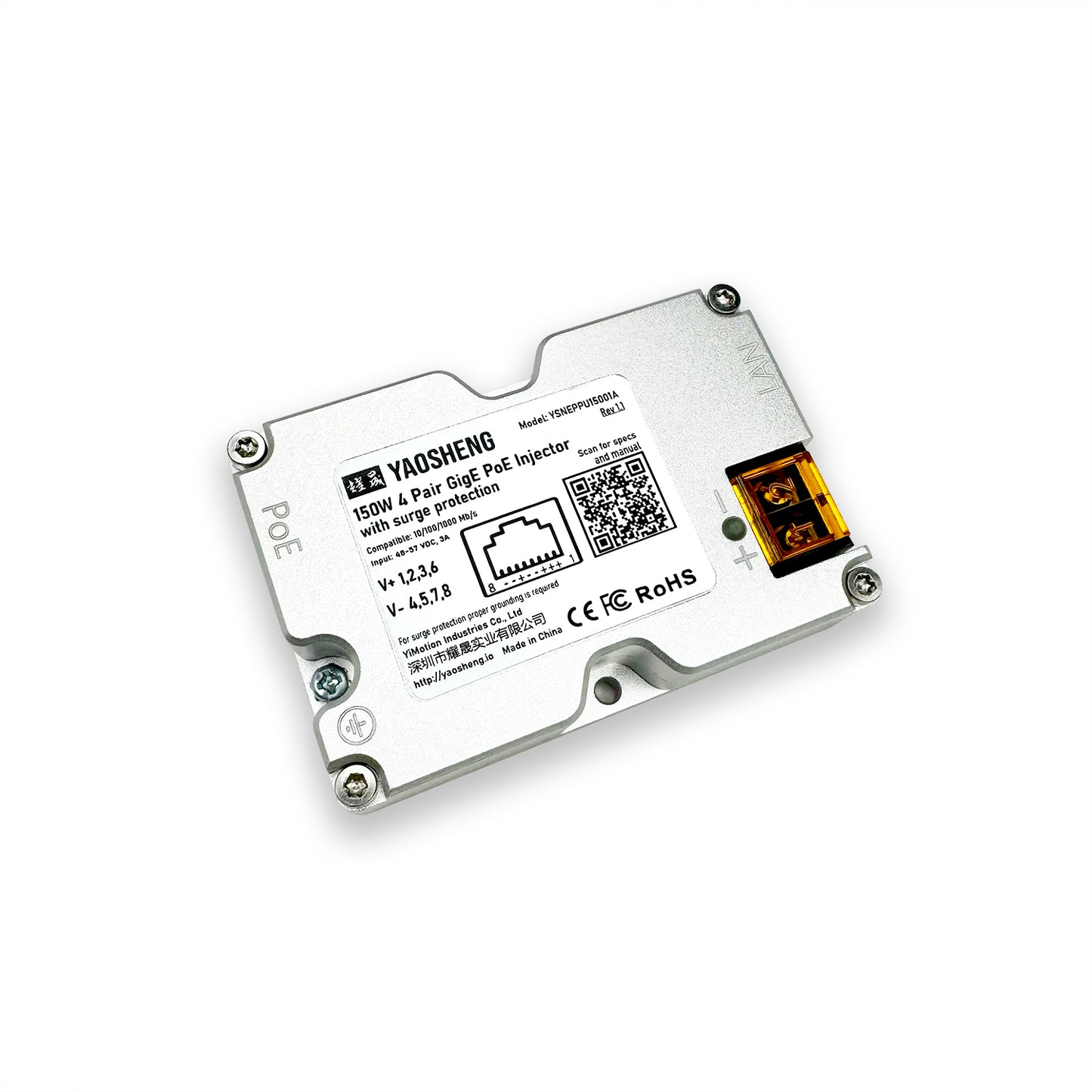

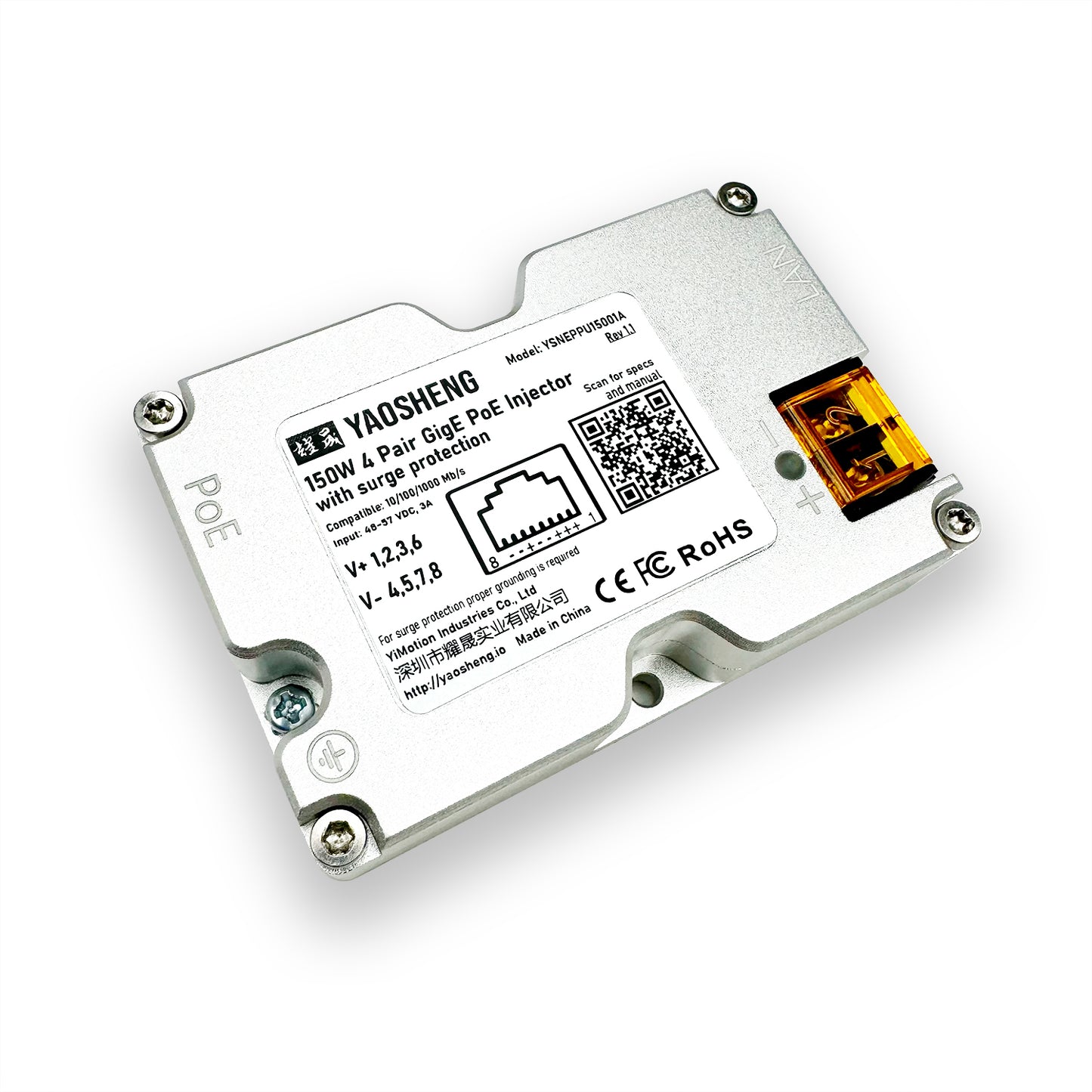

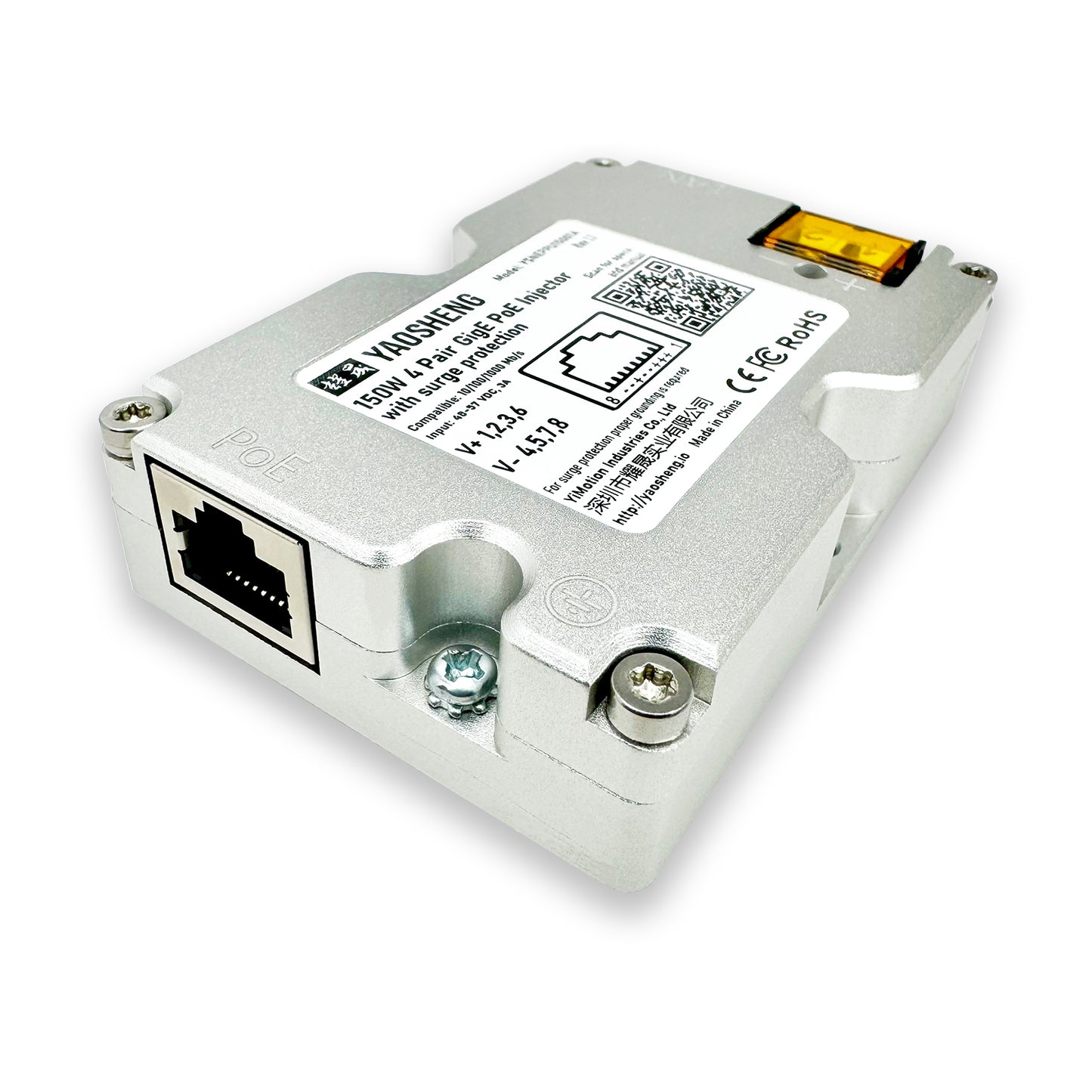

Surge protected High-power PoE injector of 150W and more (tested up to 200W)
The Schematic included a custom-ordered PoE transformer for best working parameters.
Designed especially for Standard Starlink, compatible with: 1. Round Dishy 2. Rectangular Dishy v2 (Standard Actuated Starlink) 3. Rectangular Dishy v3 (Newest version, Standard Starlink)

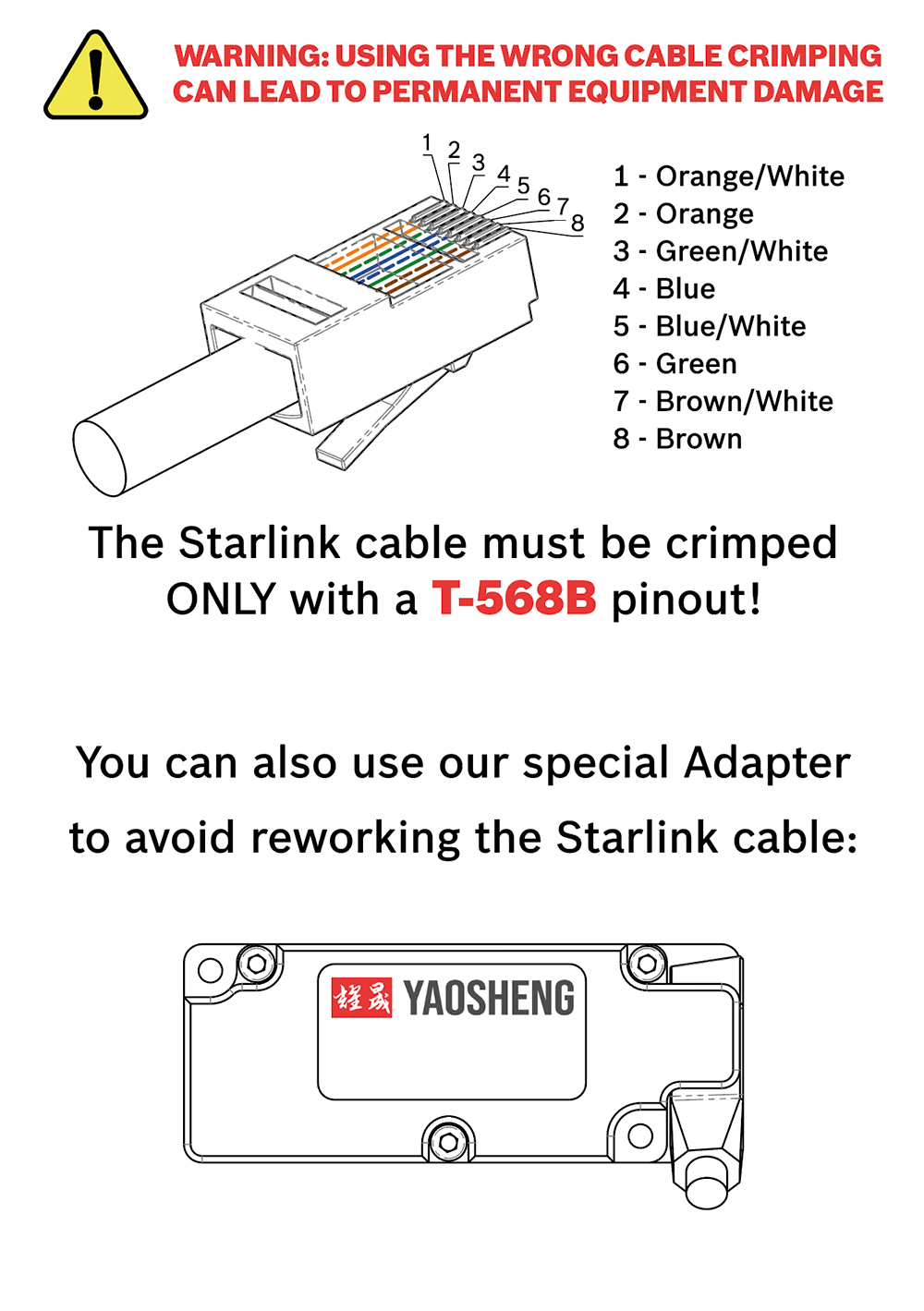

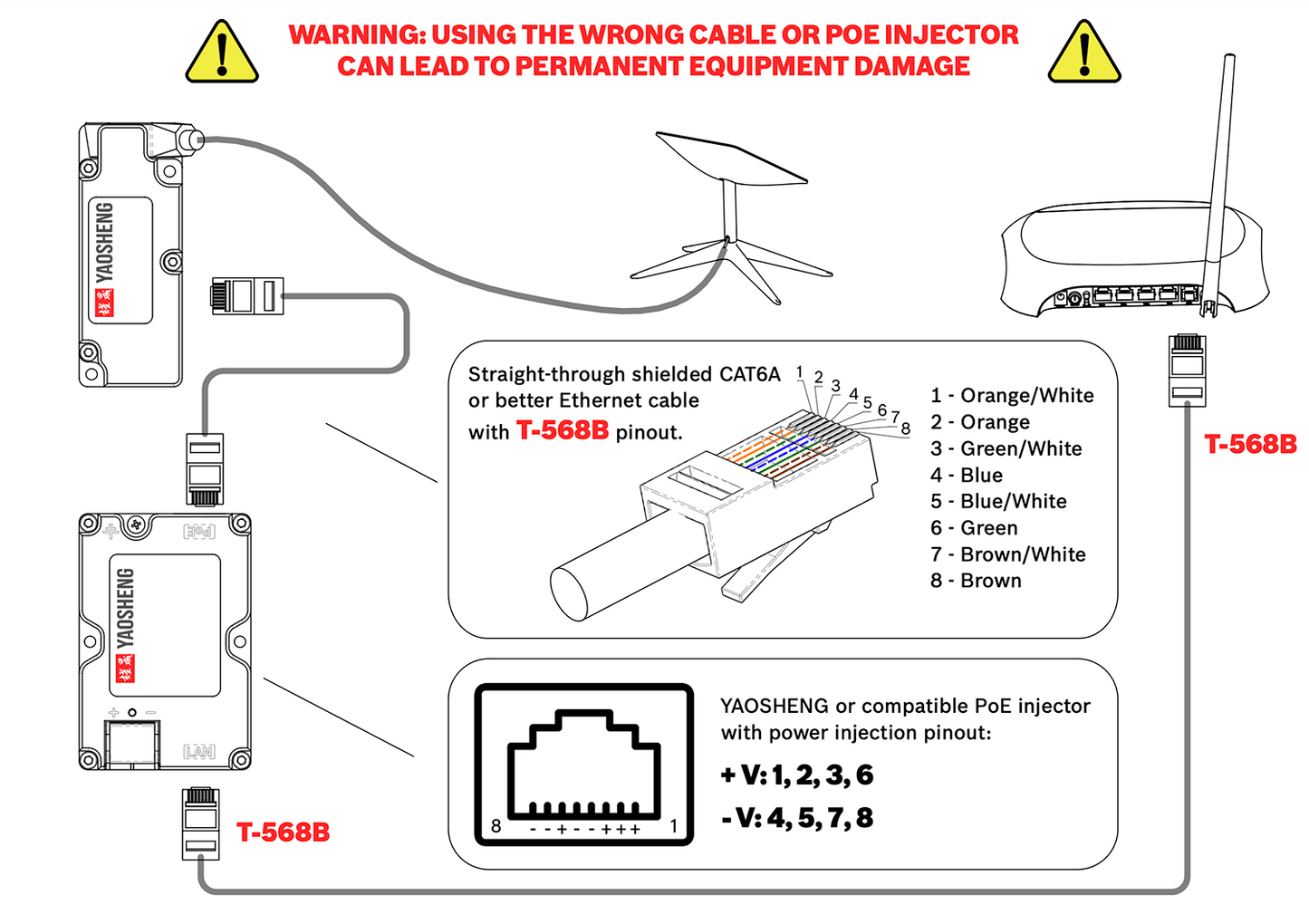

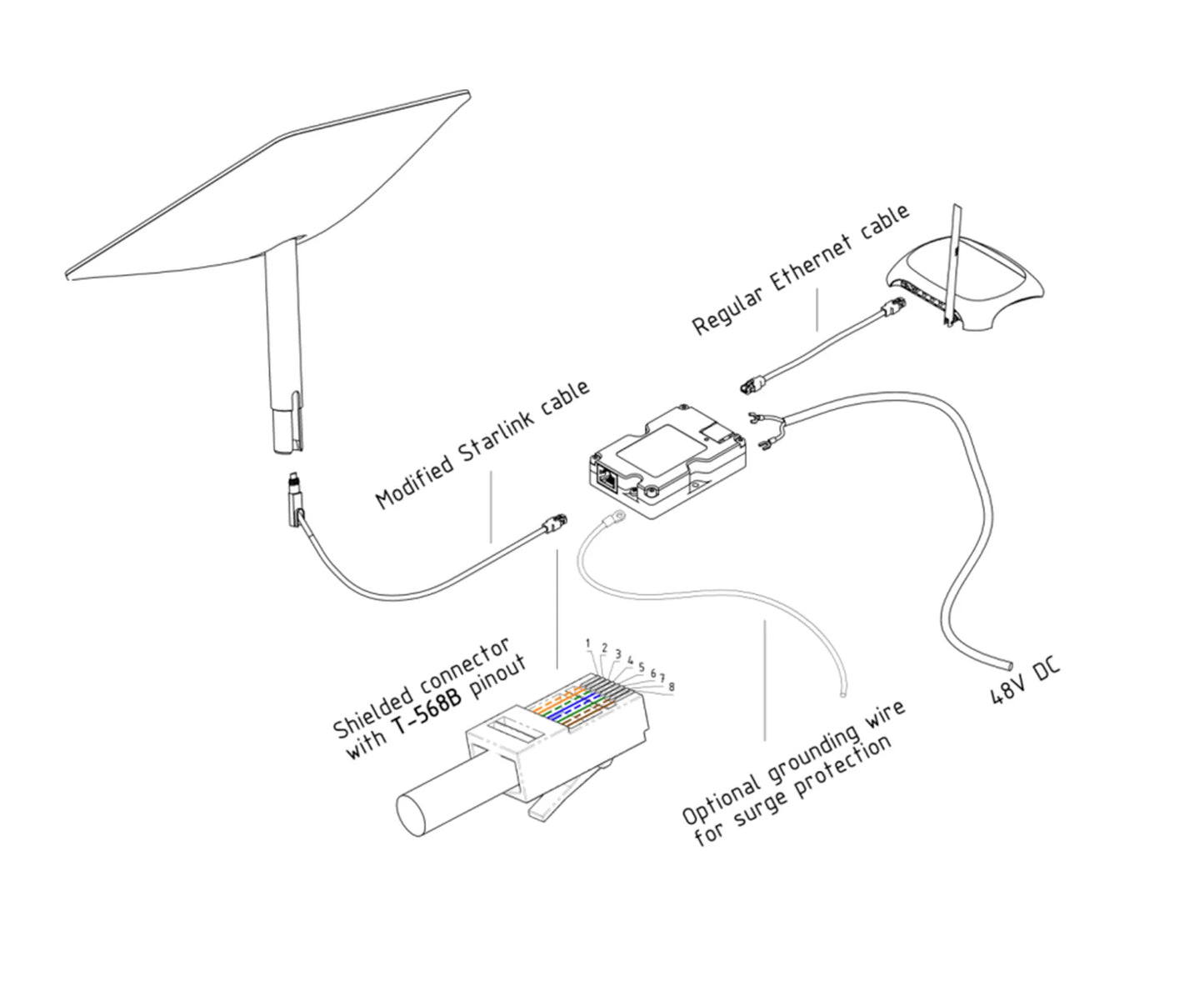

It can be used with Round Dishy and v3 Dishy with original Starlink cables. The original cable of v2 Dishy must be crimped to RJ45 with a T-568B scheme. Or you can use the YAOSHENG Adapter
Recommended power converters:
Mean Well DDR-120A-48 - Rectangular Dishy v2 Mean Well DDR-120B-48 - Rectangular Dishy v2 Mean Well DDR-240B -48 - Rectangular Dishy v3, Round Dishy
Bad-quality converters can cause your equipment to work unstable.
Specifications:
Parameter
Value
Configuration
4 Pair
Injection type
Passive
Pinout
+V: 1,2,3,6 -V: 4,5,7,8
Network speed compatibility
10/100/1000 Mb/s
Input voltage
48-57 VDC
Input/output current
3A (tested up to 4A)
Protections
Surge protection, Internal fuse
Operating temperature
-20 to +55 °C
Operating humidity
10 - 90% (non condensing)
Storage temperature
-40 to +70 °C
Model number
YSNEPPU15001A

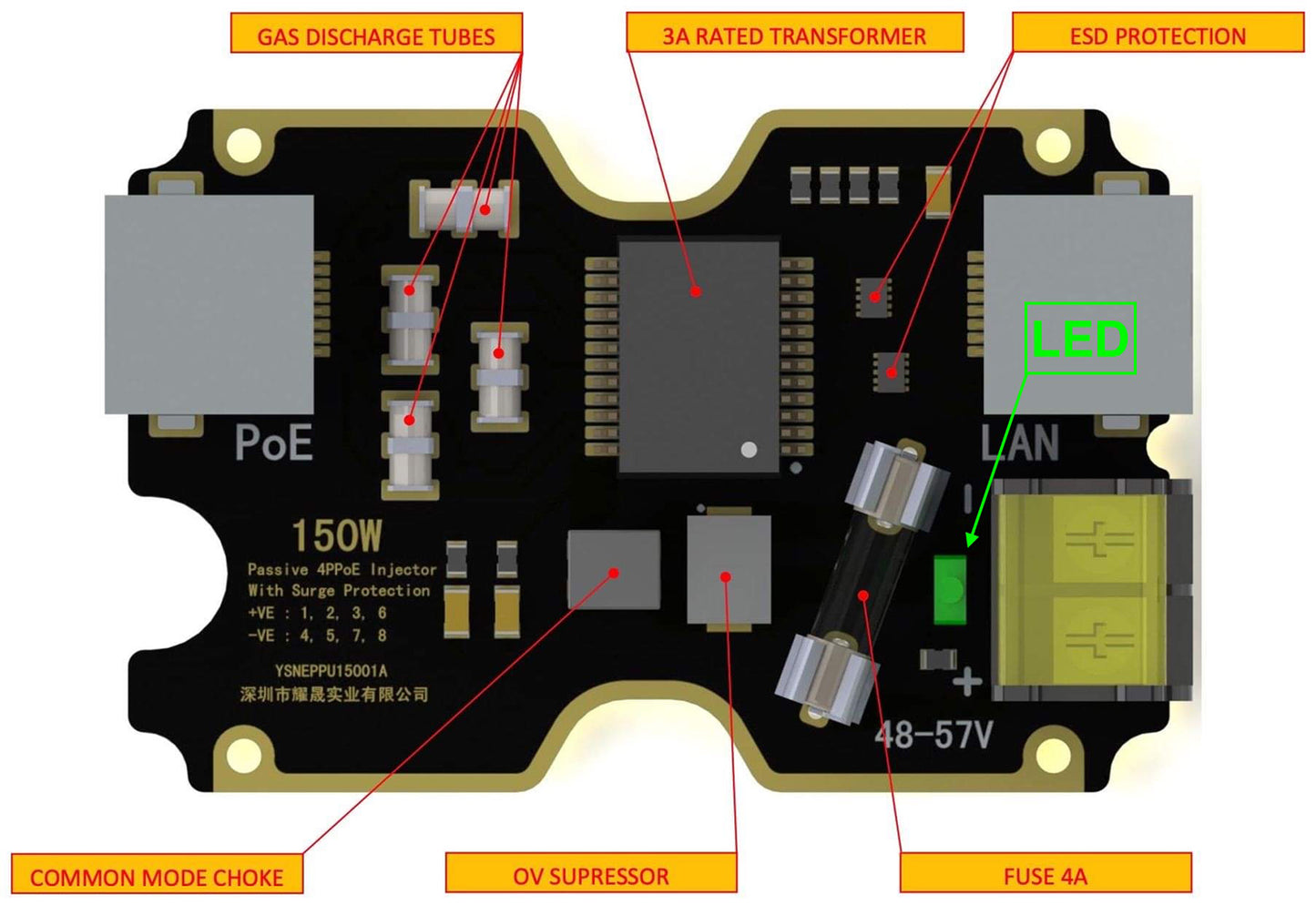

1. Input over-voltage protection - the built-in suppressor will cut the spikes if the input voltage exceeds 58V. ✔ Long time overvoltage will burn the Fuse. The fuse must be replaced after that. 2. Reverse polarity protection. ✔ Fuse burn. The fuse must be replaced after that. 3. Full over-current protection (short circuit protection) - Fuse-rated current 4A. ✔ Fuse burn. The fuse must be replaced after that.
For normal working conditions: In working mode, the LED glows Green.
Note: Product specifications are subject to change without prior notice to improve reliability, function or design or otherwise.
