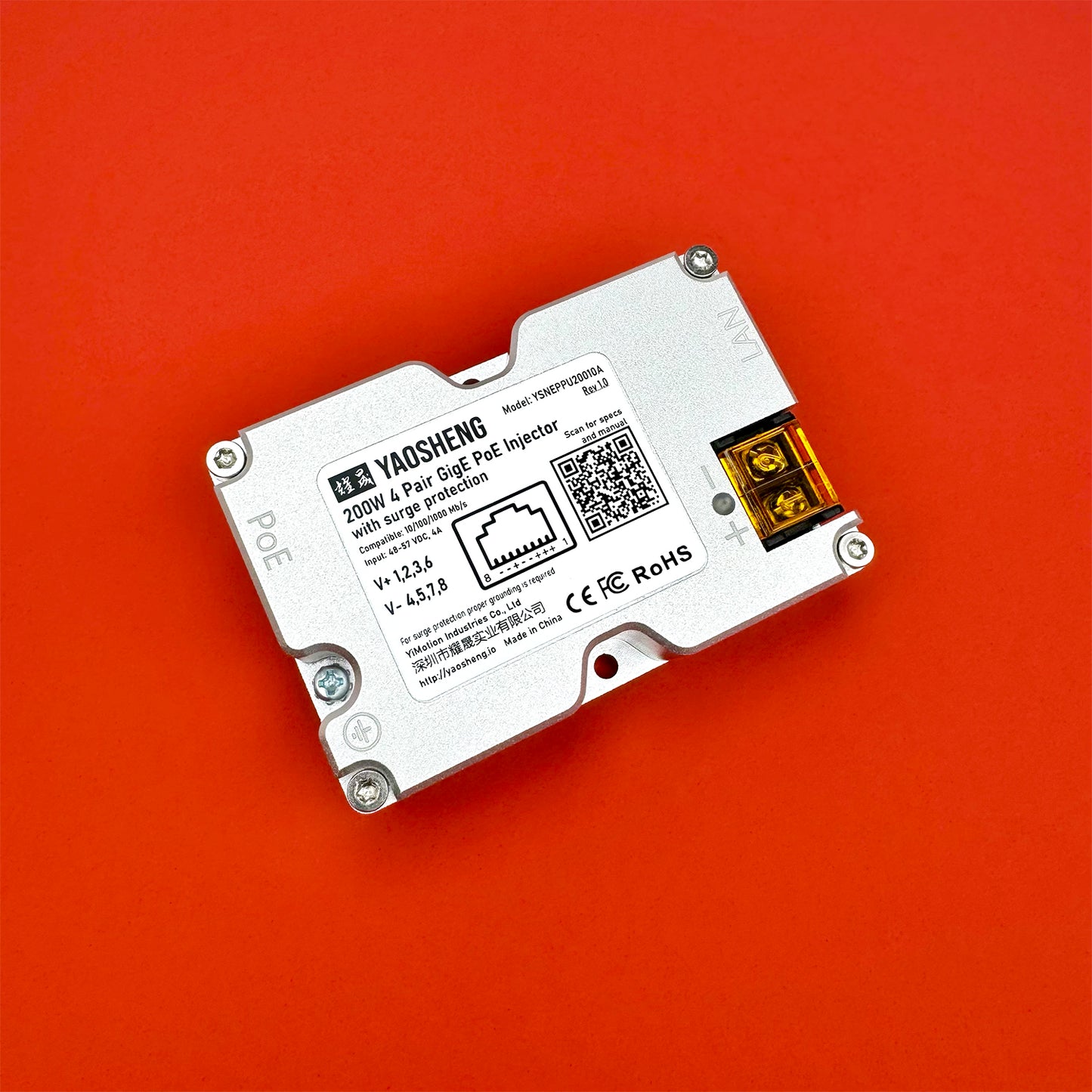

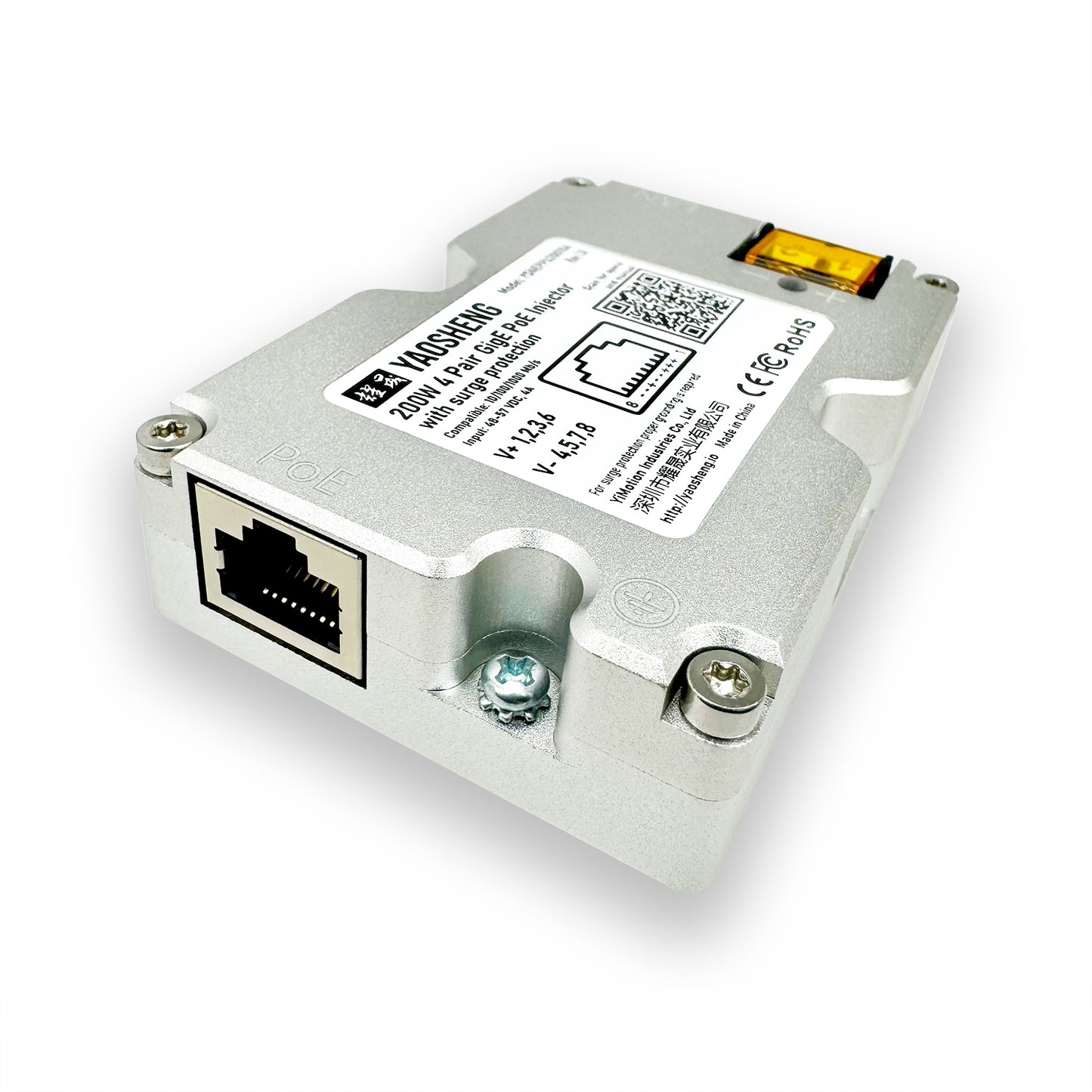

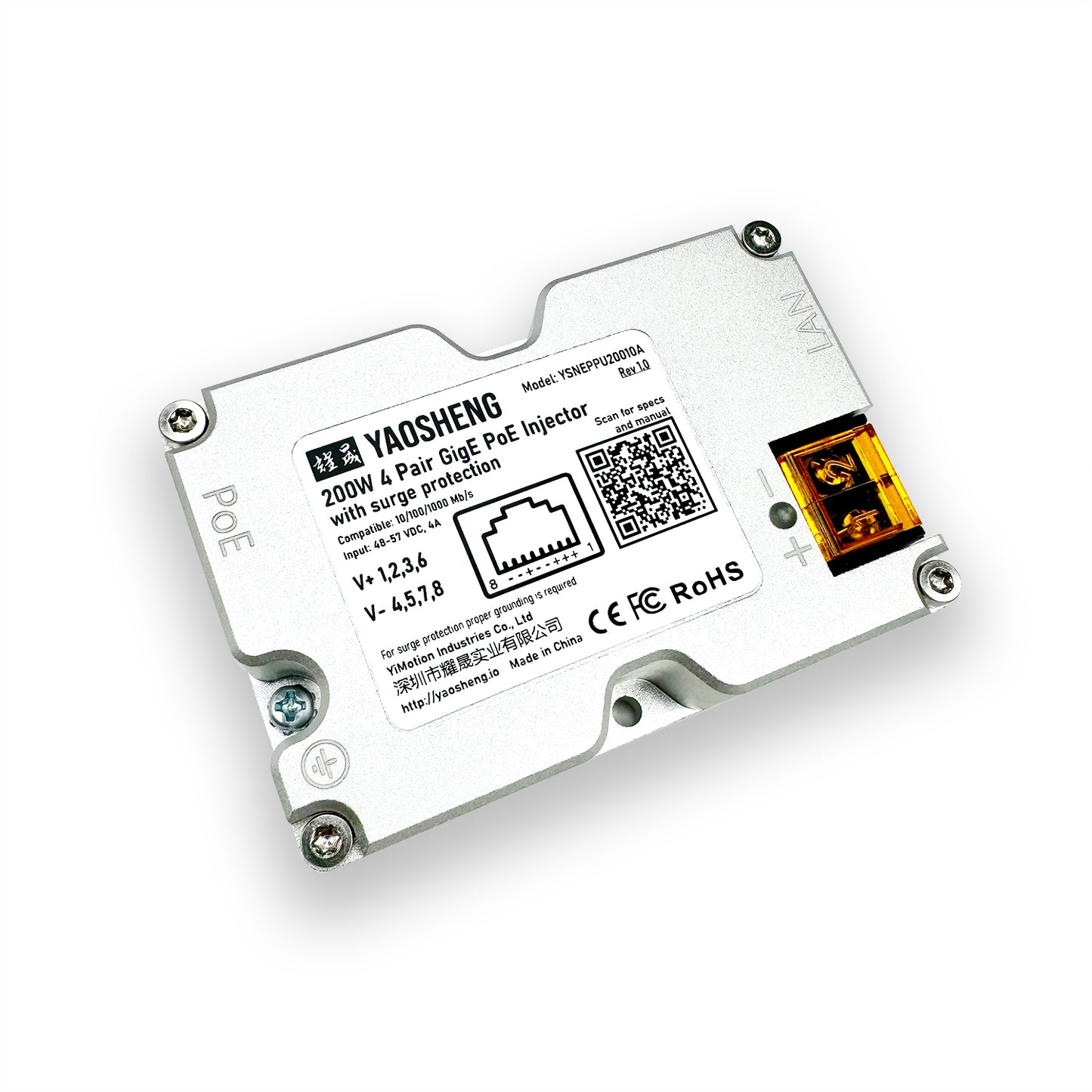

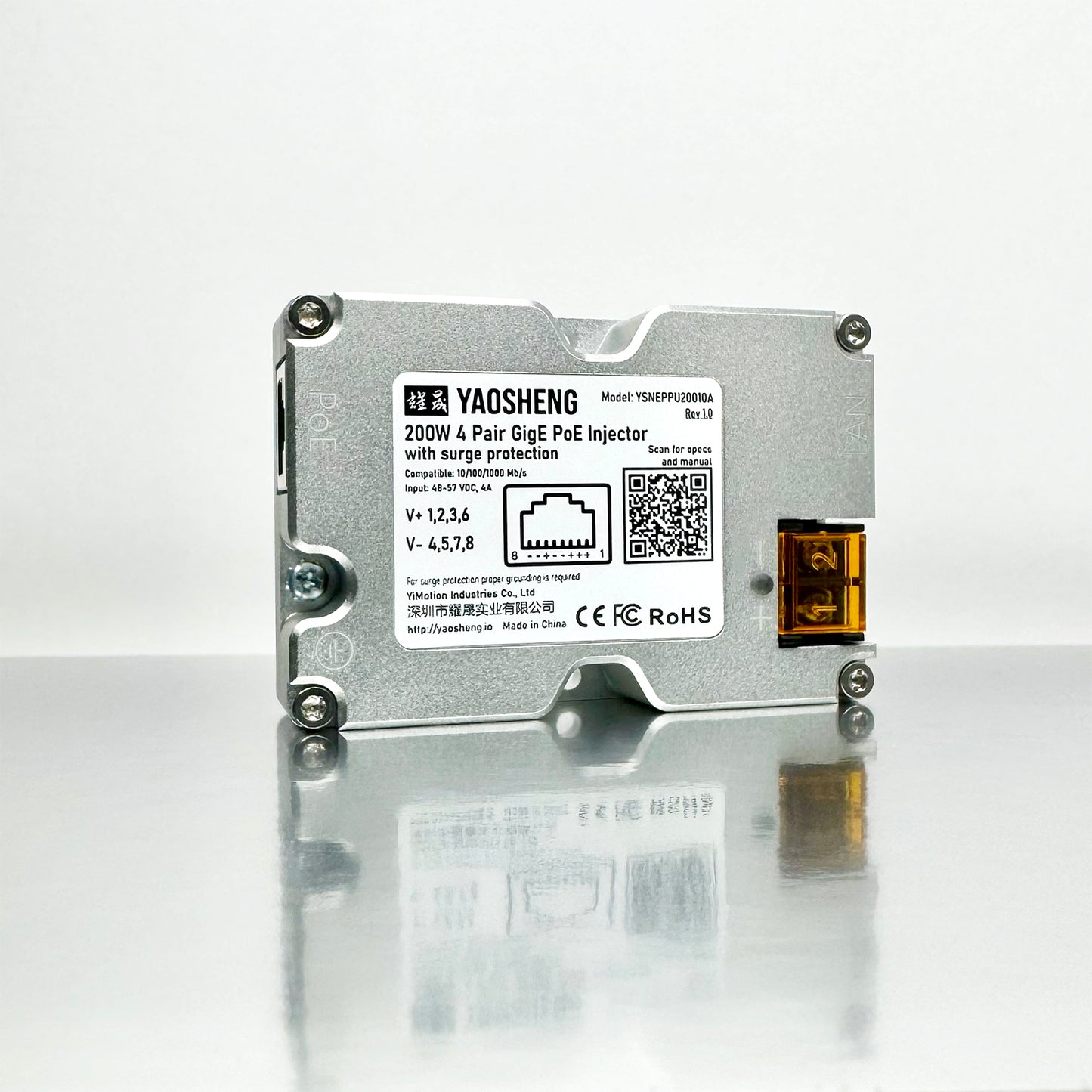

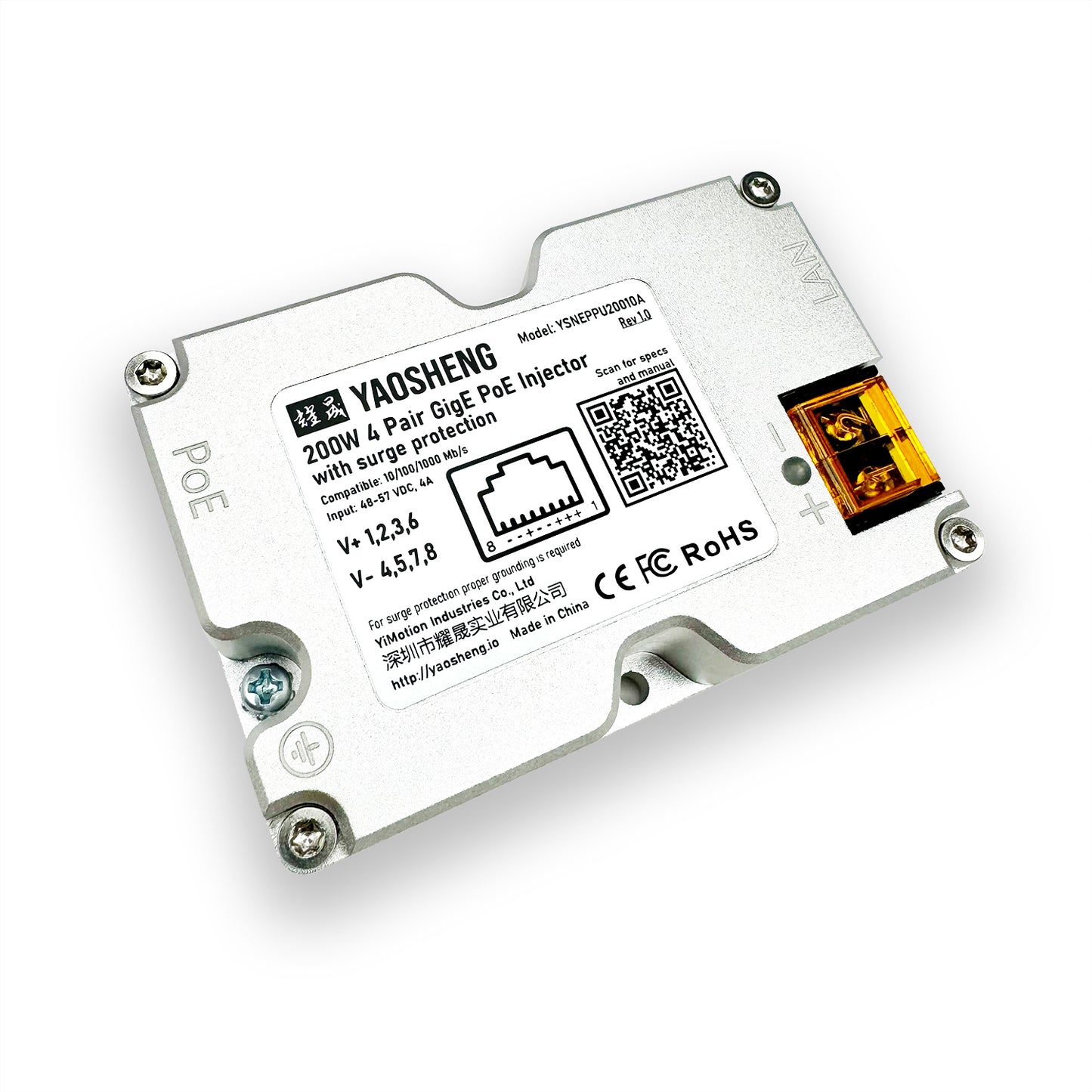

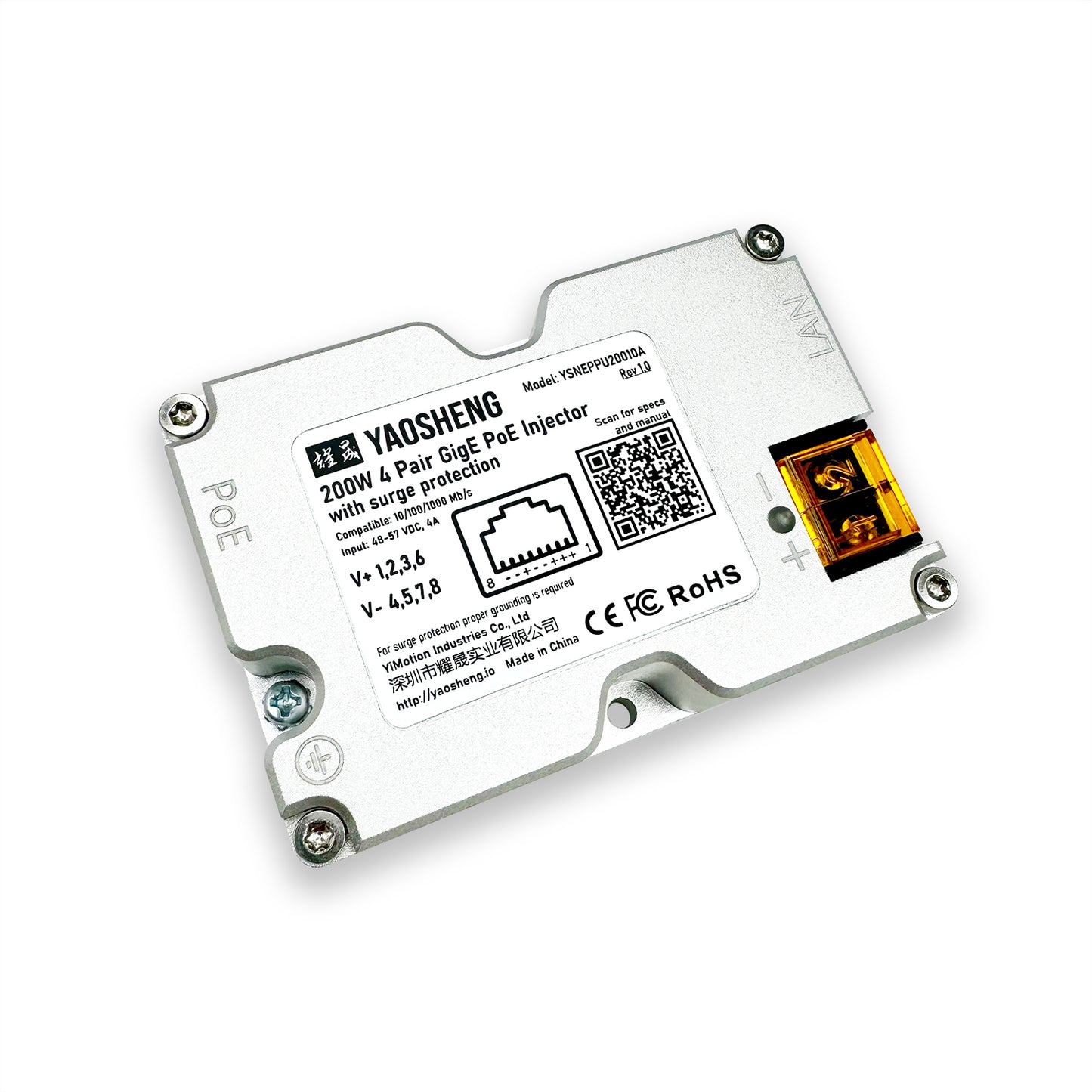

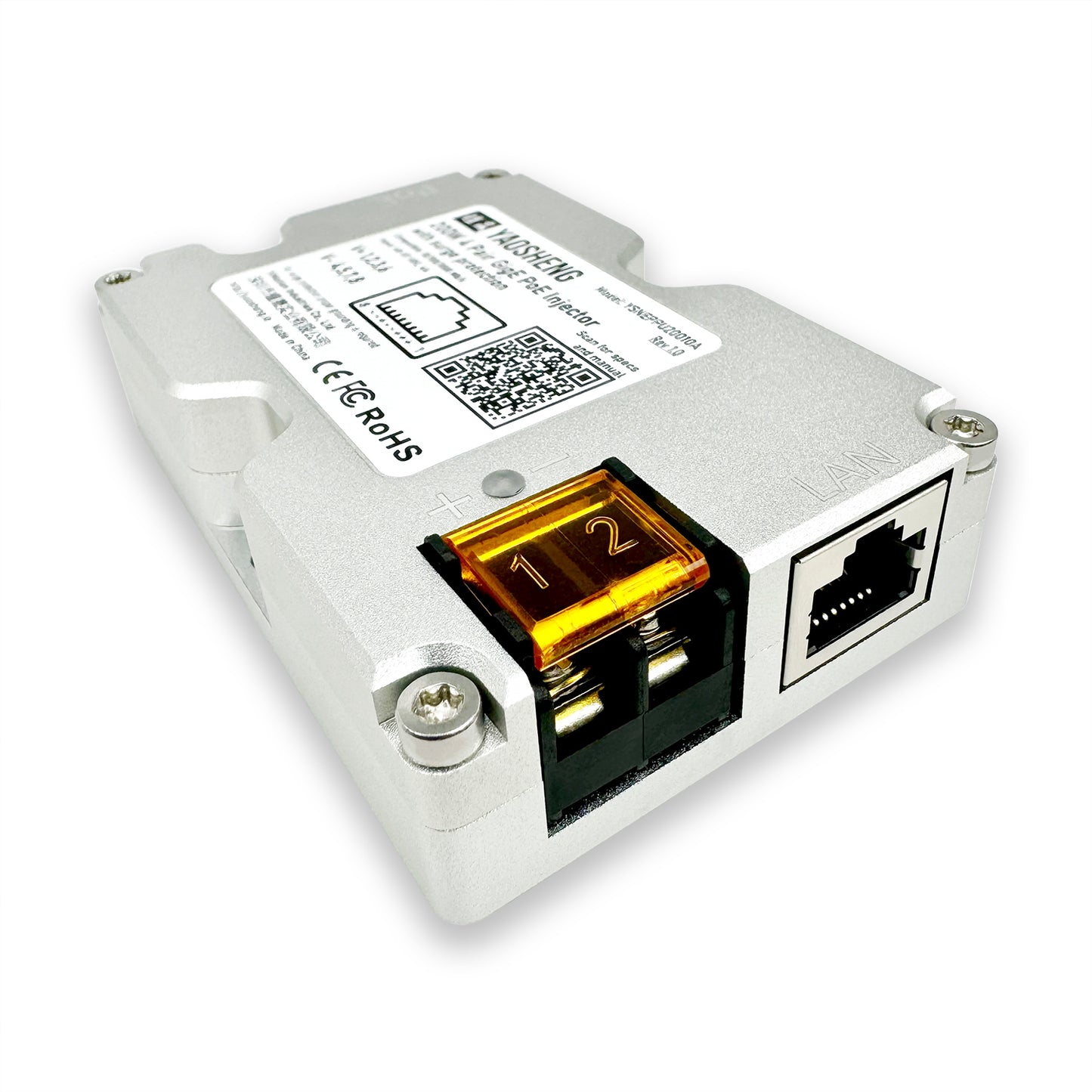

200W PoE Injector with Comprehensive Protection for All Standard Starlink Models
200W PoE Injector with Comprehensive Protection for All Standard Starlink Models
Couldn't load pickup availability
200W PoE Injector with Comprehensive Protection for All Standard Starlink Models
200W 4-pair GigE PoE injector with a complete set of indestructible protections. No more hassle with blown fuses. Built-in comprehensive protection features are designed to provide a safe and smooth usage experience. Even in case of wrong wiring or short circuit, this injector remains fully functional after working conditions are met again.
Designed especially for Standard Starlink, compatible with:
1. Round Starlink / V1 (rev1, rev2 model)
2. Standard Actuated / V2 (rev3 model)
3. Standard / V3 (rev4 model)
***NOT COMPATIBLE WITH HIGH PERFORMANCE STARLINK***
For Standard Actuated, the original cable connector must be changed to RJ45.
A crimping scheme is provided with a PoE Injector or the Yaosheng cable adapter can be used to prevent reworking cable.
Recommended power converter:
Round Starlink and Standard - Mean Well DDR-240B-48.
Standard Actuated - Mean Well DDR-120A-48 or Mean Well DDR-120B-48.
Bad quality converters can cause your equipment to work unstable.
1. Input over-voltage protection - output power will be turned off if the input voltage exceeds 57V.
• LED indication: Blinking 🔴 LED
2. Input under-voltage protection - output power will be turned off for 10 seconds if the input voltage is below 40V.
• LED indication: Blinking 🟡 LED
• LED indication: Blinking 🟡❖🔴 LED - When the input voltage does not return to normal for more than 20 seconds. The output will be locked, a reboot is needed.
3. Reverse polarity protection - reverse polarity can't damage this equipment; the input latch will be locked, and no power will be provided to the main schematic.
• LED indication: No light.
4. Full over-power protection (short circuit protection) - output power will be turned off for 10 seconds if total consumption exceeds 230W.
• LED indication: 🔴 LED
• LED indication: Blinking 🔵❖🔴 LED - If the over-power lasts over 20 seconds. The output will be locked, a reboot is needed.
5. For ordinary working conditions:
• During startup, the LED glows WHITE; in working mode, the LED glows 🟢.
Specifications:
| Parameter | Value |
| Configuration | 4 Pair |
| Injection type | Passive |
| Pinout | +V: 1,2,3,6 -V: 4,5,7,8 |
| Network speed compatibility | 10/100/1000 Mb/s |
| Input voltage | 48-57 VDC |
| Input/output current | 4A |
| Protections | Surge protection, MCU-based logic |
| Operating temperature | -20 to +55 °C |
| Operating humidity | 10 - 90% (non condensing) |
| Storage temperature | -40 to +70 °C |
| Model number | YSNEPPU20010A |
Note: Product specifications are subject to change without prior notice to improve reliability, function or design or otherwise.
