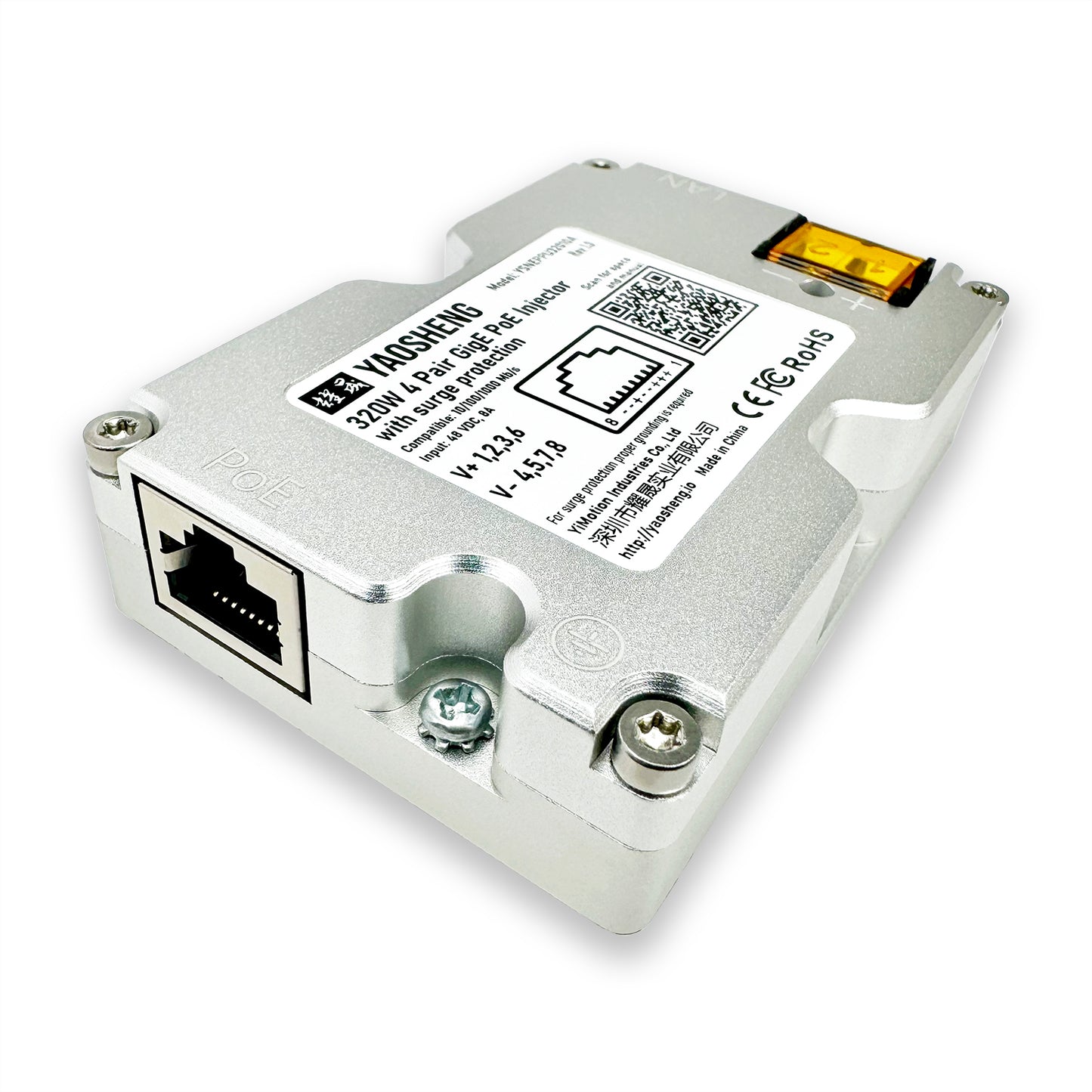

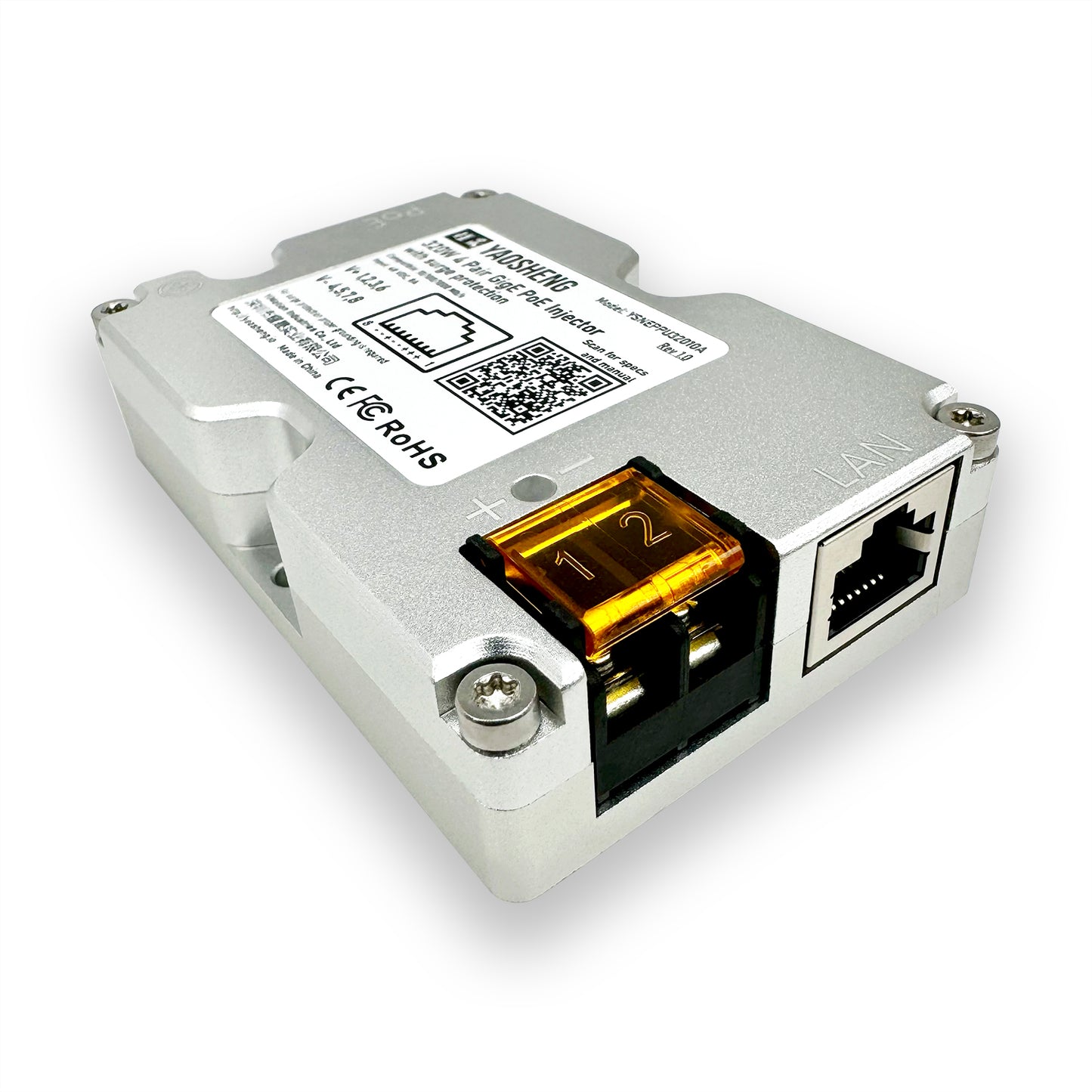

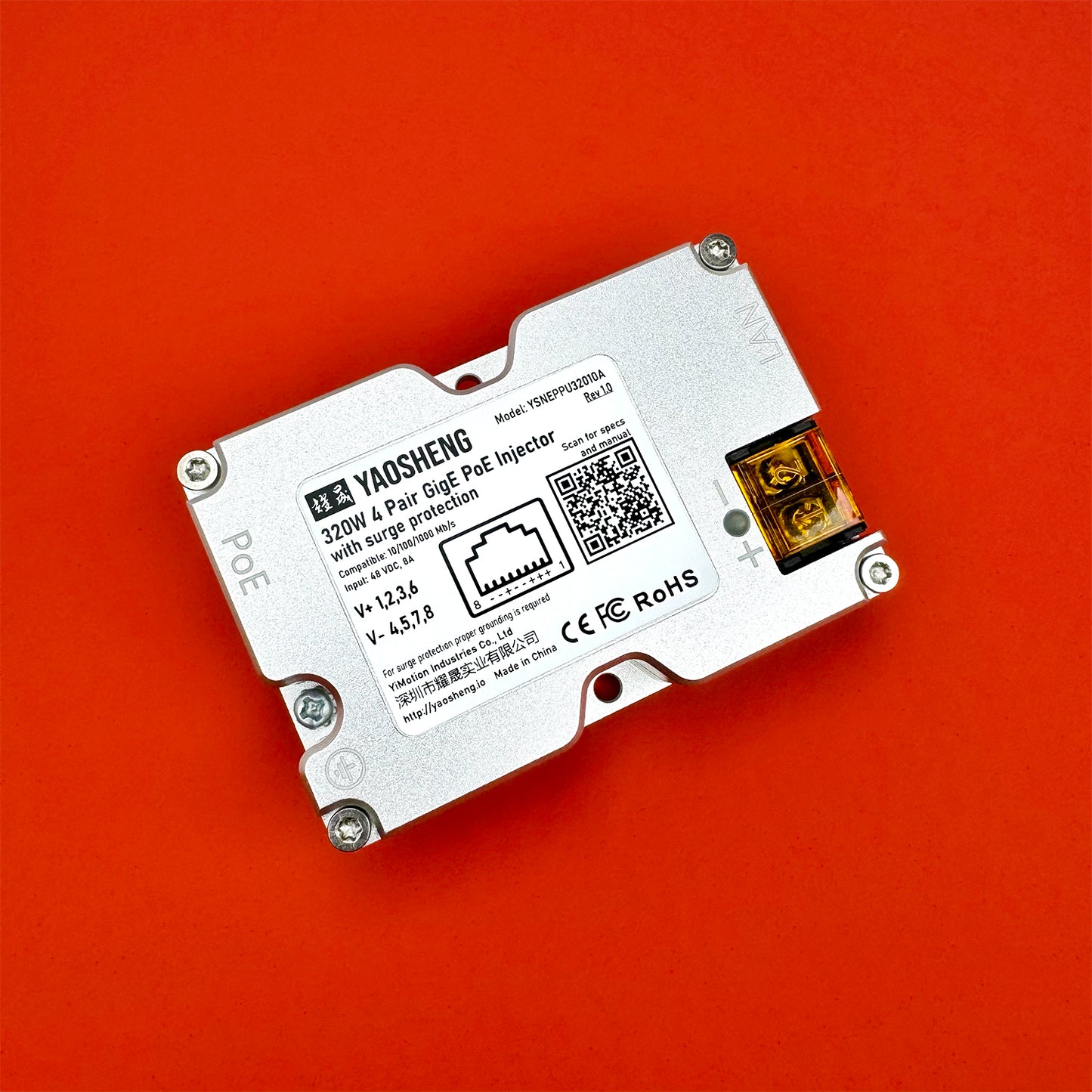

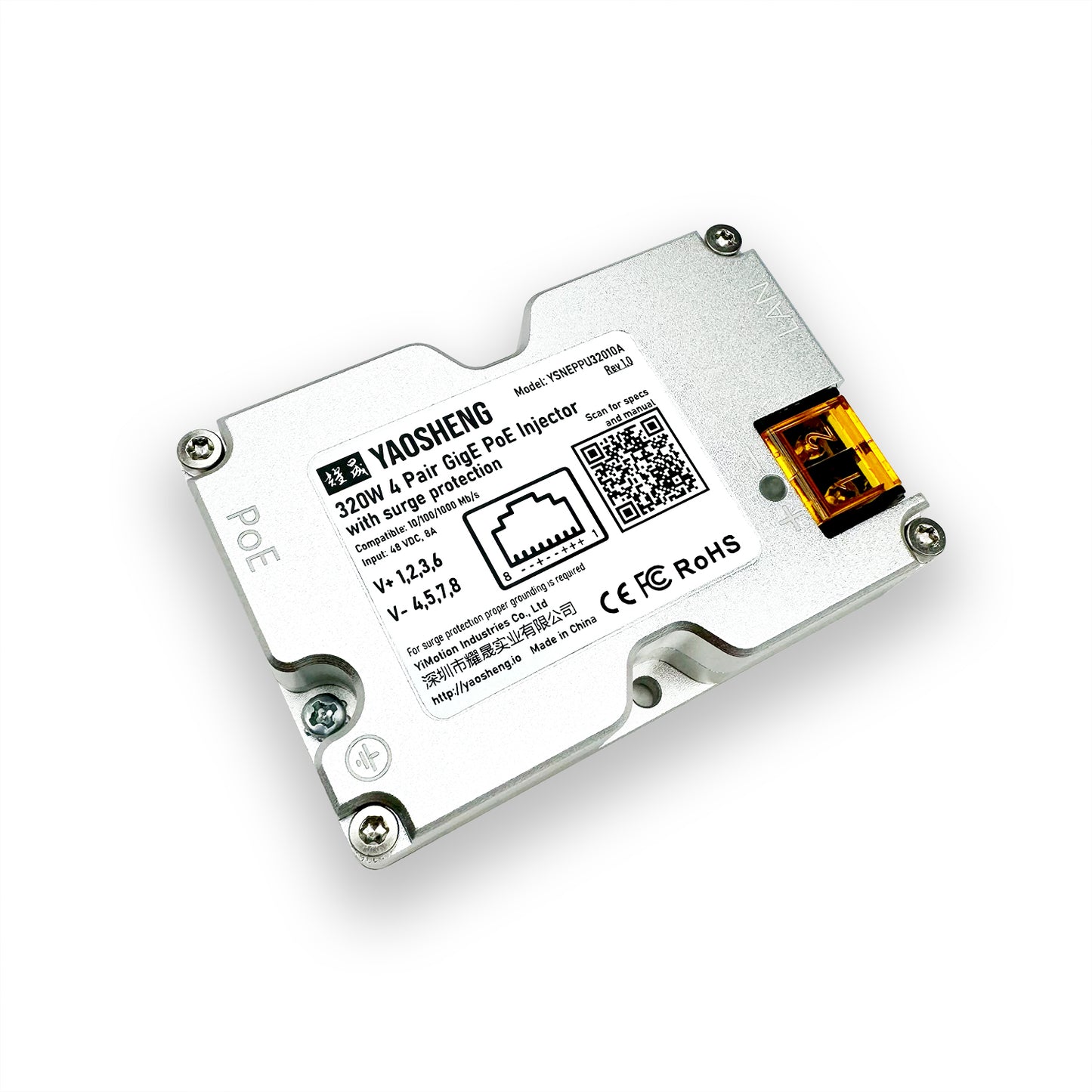

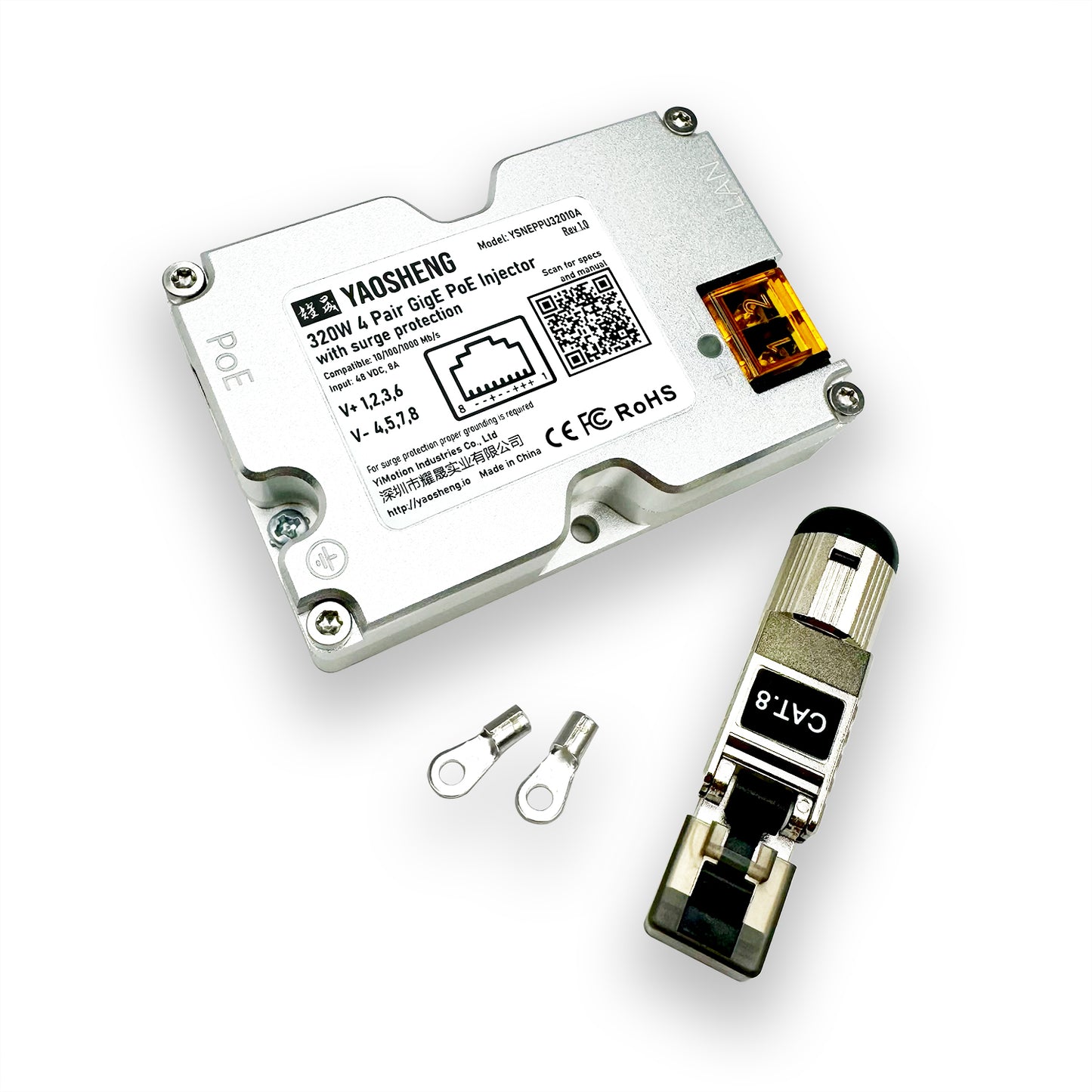

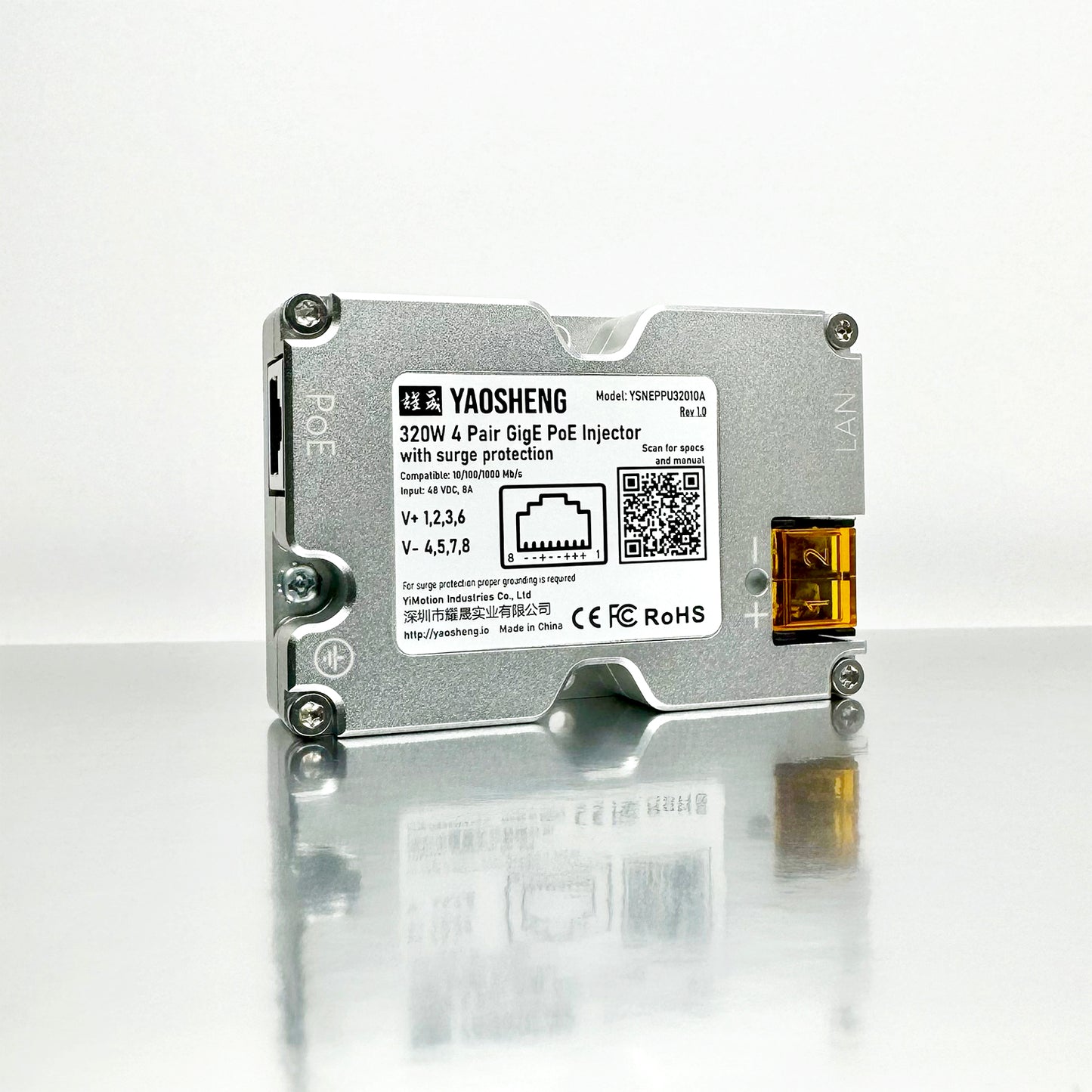

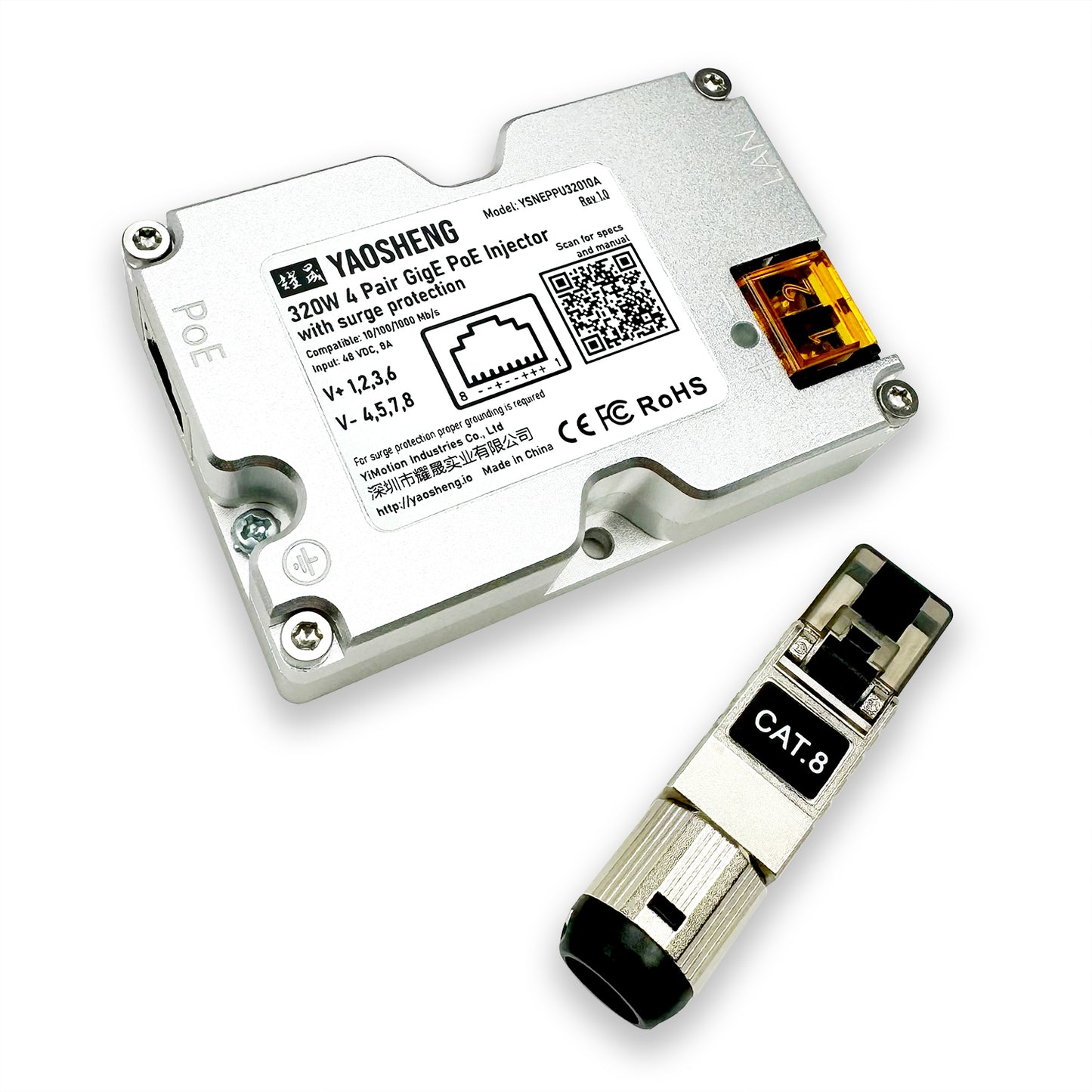

320W PoE Injector with Comprehensive Protection for High Performance Dishy.
Designed especially for Starlink High Performance, compatible with: 1. HIGH PERFORMANCE 2. FLAT HIGH PERFORMANCE
Improved functions:
1. Input over-voltage protection - output power will be turned off if the input voltage exceeds 56V. • LED indication: Blinking 🔴 LED 2.Input under-voltage protection - output power will be turned off for 10 seconds if the input voltage is below 40V. • LED indication: Blinking 🟡 LED • LED indication: Blinking 🟡❖🔴 LED - When the input voltage does not return to normal for more than 20 seconds. The output will be locked, a reboot is needed. 3.Reverse polarity protection - reverse polarity can't damage this equipment; the input latch will be locked, and no power will be provided to the main schematic. • LED indication: No light. 4. Full over-current protection (short circuit protection) - output power will be turned off for 10 seconds if total consumption exceeds 10A. • LED indication: 🔴 LED • LED indication: Blinking 🔵❖🔴 LED - If the over-current lasts over 20 seconds. The output will be locked, a reboot is needed. 5. Each line current control - output power will be turned off for 10 seconds if any RJ45 line consumption exceeds 3.2A. • LED indication: 🔴 LED • LED indication: Blinking 🔵❖🔴 LED - If the over-current lasts over 20 seconds. The output will be locked, a reboot is needed.
For normal working conditions: during startup LED glows White, in working mode LED glows 🟢.
Specifications:
Parameter
Value
Configuration
4 Pair
Injection type
Passive
Pinout

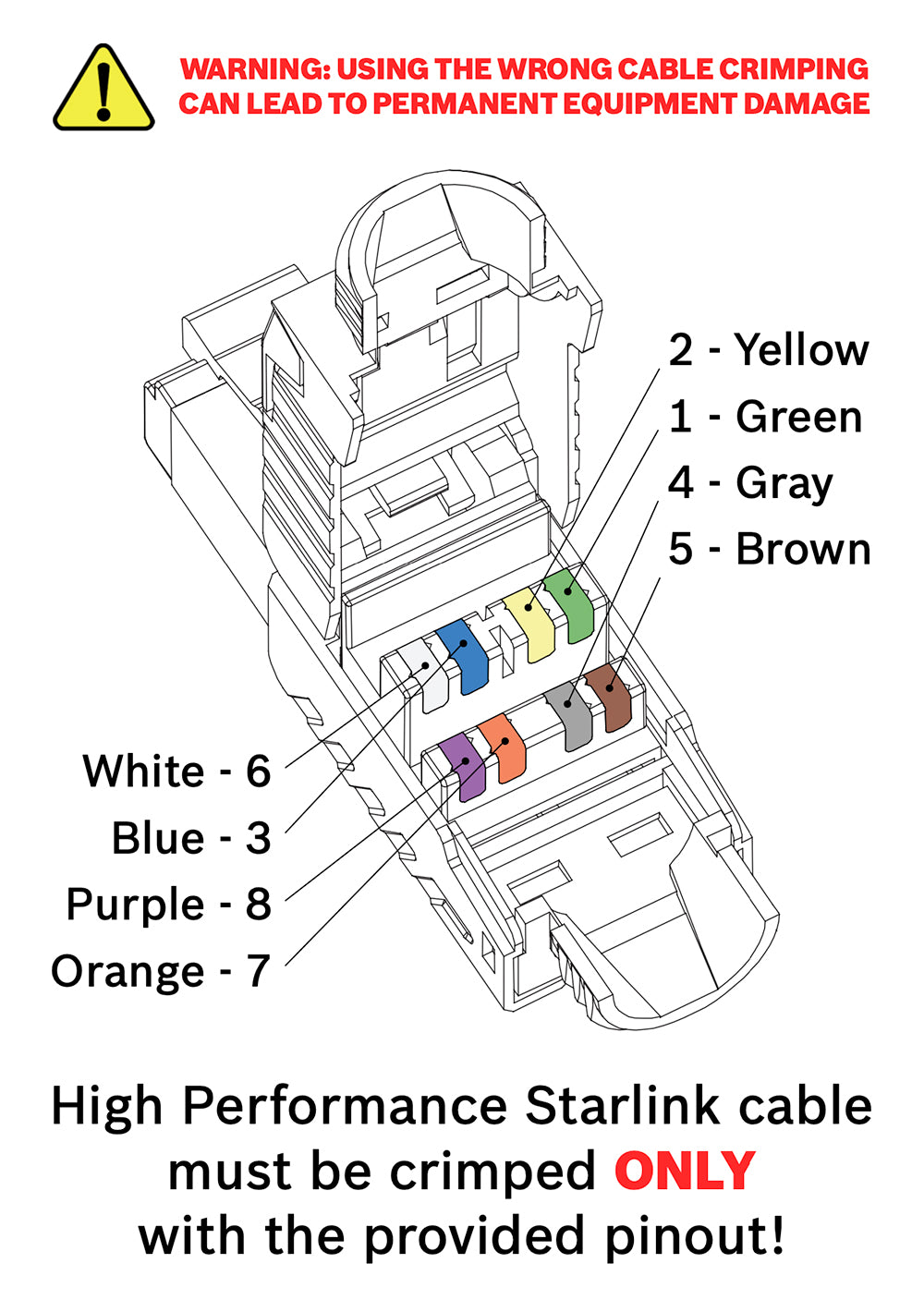

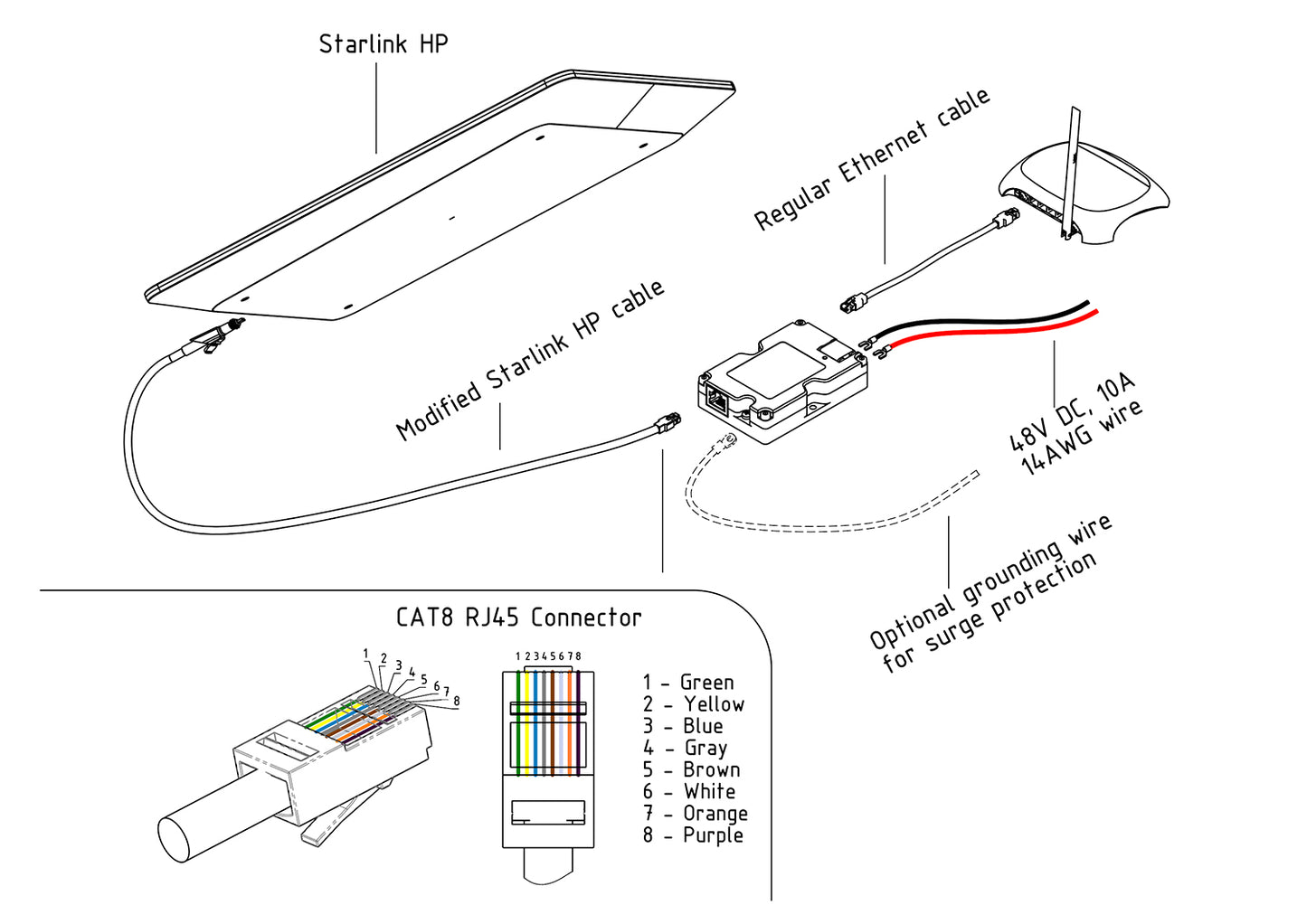

+V: 1,2,3,6 -V: 4,5,7,8
Network speed compatibility
10/100/1000 Mb/s
Input voltage
48 VDC
Input/output current
8A max
Protections
Surge protection, MCU-based logic
Operating temperature
-20 to +55 °C
Operating humidity
10 - 90% (non condensing)
Storage temperature
-40 to +70 °C
Model number
YSNEPPU32010A
Note: Product specifications are subject to change without prior notice to improve reliability, function or design or otherwise.
