YAOSHENG 220W Gen3 Step Up Dual PoE Injector
YAOSHENG 220W Gen3 Step Up Dual PoE Injector
Couldn't load pickup availability
Designed especially for Standard Starlink (Rectangular Dishy V3)

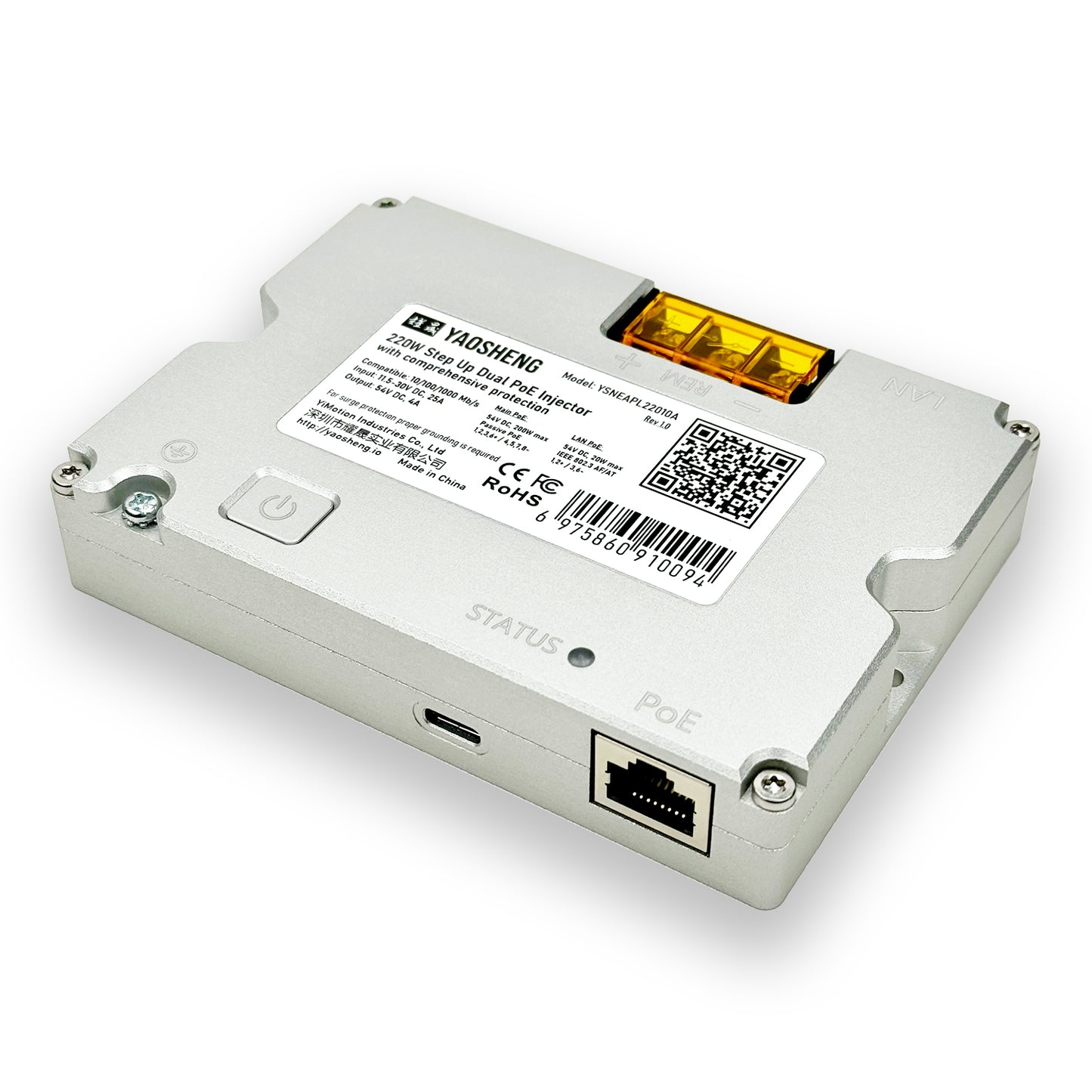

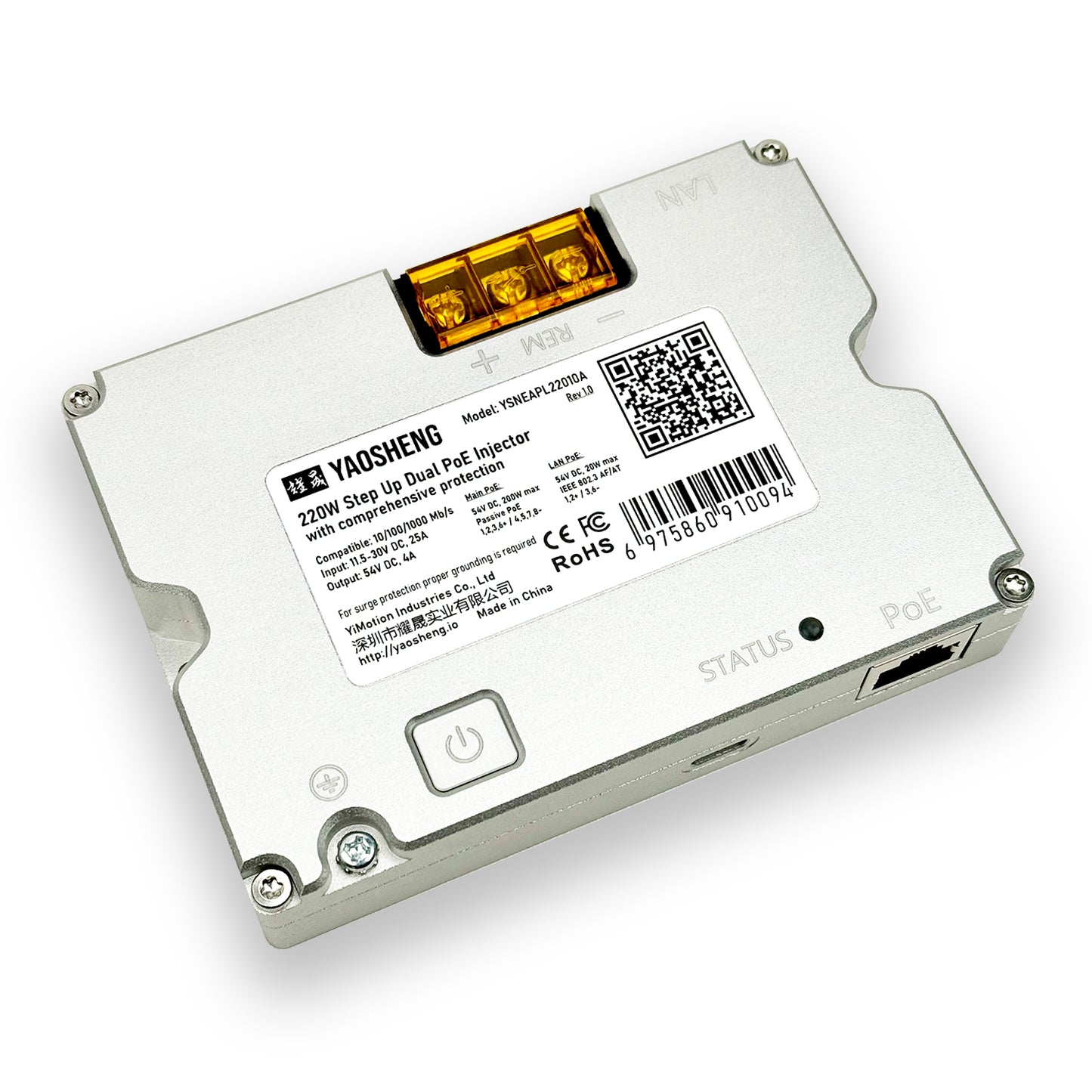

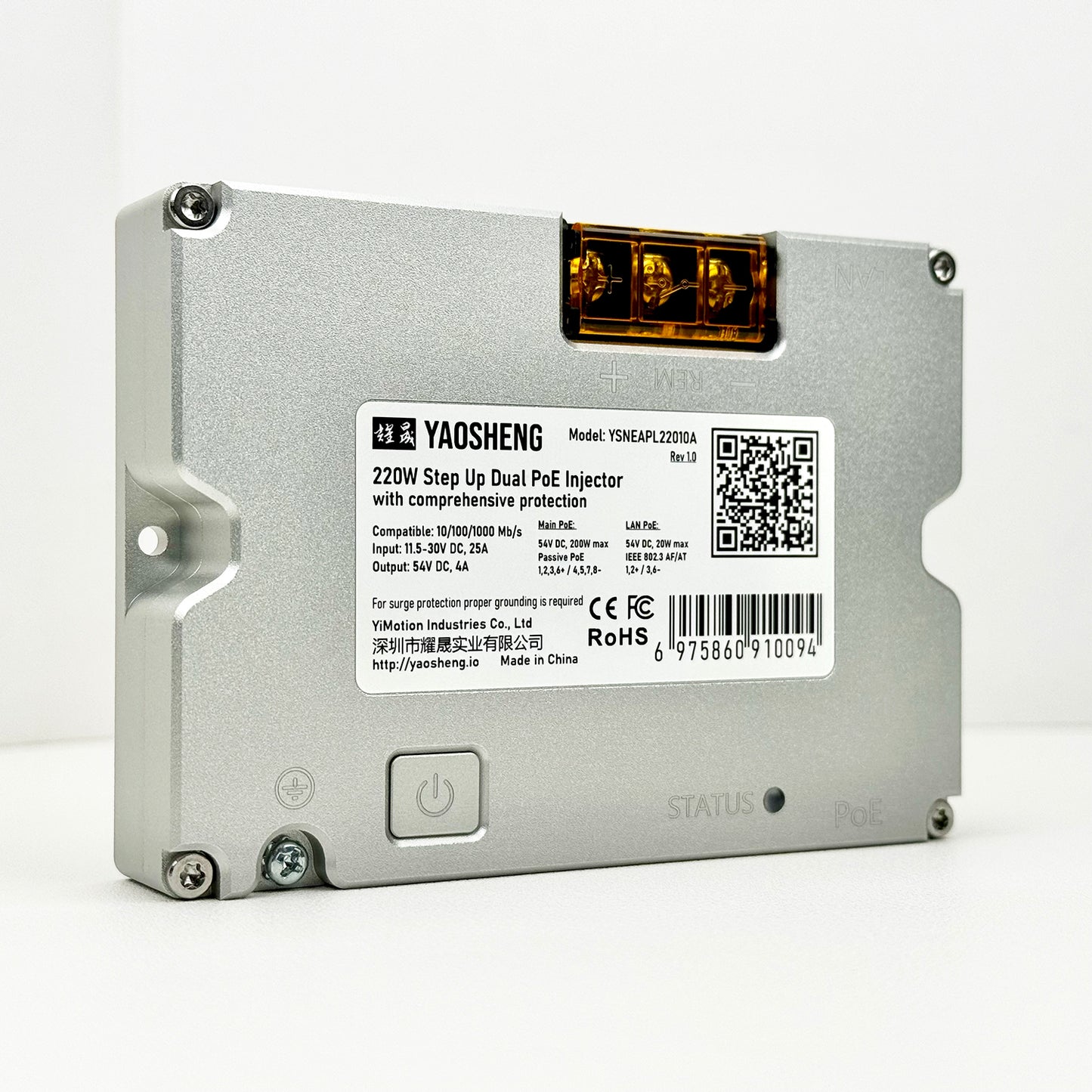

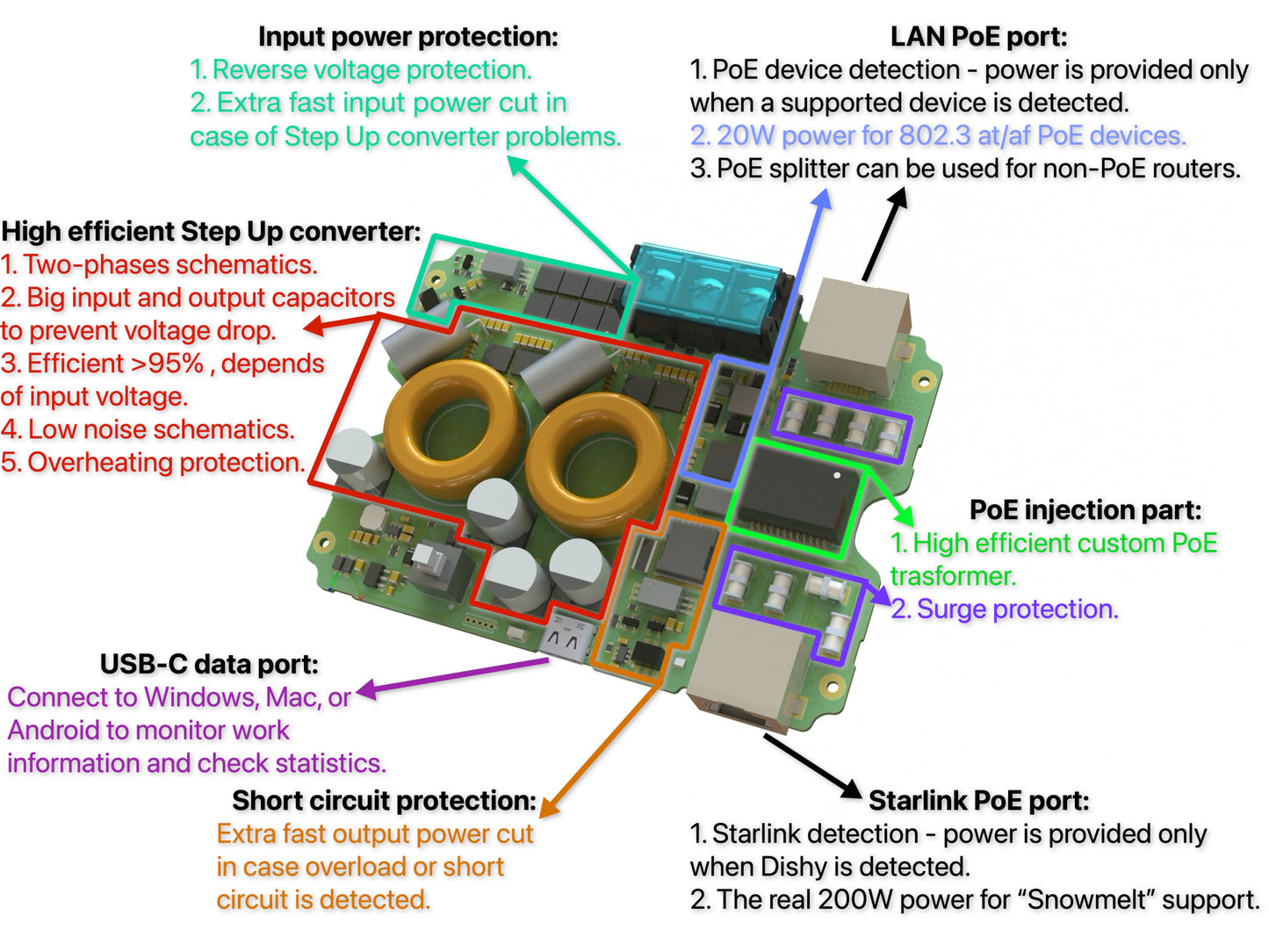

YSNEAPL22010A is the first device of the updated Step Up PoE injectors series released in July 2024 that was specially designed for Starlink 3rd generation. It implements several new features like Dual PoE and Type-C management port for configuration, monitoring, and digital control. With the Dual PoE function, you no longer need to use a separate power supply for the router. PoE-enabled routers can be directly powered by the PoE injector; routers without PoE support can be powered using a PoE splitter. In case the router PoE function is not required it can be completely turned off via the management port. As well as its predecessors, the 220W PoE injector has a full set of indestructible protections. No more hassle with blown fuses. Built-in comprehensive protection features are designed to provide a safe and smooth usage experience. Even in case of wrong wiring or short circuit, the injector remains fully functional after working conditions are met again.
Description of control function:
Connect the device to the USB port of your laptop or Android device, and allow connection to the device if needed.
Go by the link in the notification. Web serial port application will be opened. Push the connect button, choose the device in the list, and push connect again.
Now, you can see the real-time parameters of the device and can change values of minimum and low-level input voltage.
Also, some device functions can be controlled via the Terminal using commands. This can be convenient if you plan to integrate the device into your smart solutions. The serial port over Type-C will appear after connecting the device to your system. It can be controlled by a web app or any serial Terminal at 9600 bps.
An example of the Terminal work can be obtained through the web interface by clicking on the copyright mark at the bottom of the page 7 times in a row. After that, the web-terminal window will be opened.
Commands:
| Command | Function |
| STAT? | get current device status |
| BOOST ON | turn on Step up |
| BOOST OFF | turn off Step up |
| BOOST MODE AUTO | set Step up to autostart |
| BOOST MODE MANUAL |
set Step up to manual mode WARNING!!! after power cycle boost will not be working until receive "BOOST ON" command!!!! |
| BATTERY? | get low battery notification voltage and turn off voltage |
| BATTERY: [10.2V, 11.0V] | set low battery turn off voltage to 10.2V, low battery notification (yellow led light) to 11.0V |
| PSE OFF | LAN PoE disable |
| PSE AUTO | LAN PoE auto detection and negotiation |
| DISH OFF | Starlink power disable |
| DISH ON | Starlink power enable |
Description of LED indication of device states:
| ⚪️ White LED | • Startup (or disabled output in manual mode) |
|
⚪️ White LED blinking |
• Waiting for Dishy to be connected (from Rev2.0) |
| 🟢 Green LED | • Normal operation state |
| 🟡 Yellow LED | • Input voltage below seted middle battery level (default set to 11.5v) |
| 🟡 Yellow LED blinking |
• Input voltage below seted minimum discharge level (default set to 10.5v). Output shutdown if the voltage in this state is over 5 sec |
| 🔴/🟡 Red/Yellow LED blinking |
• Input voltage below 10v. Device undervoltage protection, Step Up Booster sutting down |
| 🔴 Red LED |
• Output short circuit detected Step Up Booster shut down |
| 🔴 Red LED blinking |
• Output short circuit detected several times Step Up Booster shut down, device locked - power cycle required after short circuit eliminated |
| 🔵 Blue LED |
• Overtemperature
Device inner temperature higher 80ºC/176°F - Step Up Booster shut down. Return to normal work at a temperature lower than 70ºC/158°F |
| 🔴/🔵 Red/Blue LED blinking | • Overvoltage detected |
| 🟣 Purple LED | • Internal electronics problem |
Specifications:
| Parameter | Value |
| Configuration | 4 Pair high power PoE injection |
| PoE Injection type to Starlink | Passive |
| PoE Pinout of Starlink | +V: 1,2,3,6 -V: 4,5,7,8 |
| PoE Injection type to LAN | Active IEEE802.3 AF/AT |
| PoE Pinout of LAN | +V: 1,2 -V: 3,6 |
| Network speed compatibility | 10/100/1000 Mb/s |
| Absolute input rate | 10.0 - 30.0 VDC, up to 25A |
| Output rate | 54 VDC, up to 4A |
| Output power | 225W max |
| Protections | Surge protection, MCU-based Comprehensive Protection functions |
| Operating temperature | -20 to +55 °C |
| Operating humidity | 10 - 90% (non condensing) |
| Storage temperature | -40 to +70 °C |
| Model number | YSNEAPL22010A |
Note: Product specifications are subject to change without prior notice to improve reliability, function, design, or otherwise.
